Arizona 10 ft. x 16 ft. Wave Single Carport Kit - Grey Structure & Corrugated Solar Grey Panels

Size

Preview in 3D

Preview in AR

Scan QR code for AR preview on your device
Requires compatible Apple iOS 13 or Android with ARCore 1.9+
Structure color
Glazing

The Arizona Single Carport has been crafted to meet your needs for outdoor protection. Its two-legged form makes it easy to access and works just as well as a patio cover, offering shade and protection whether you use it for your car or as an outdoor covered lounge area. The unique arch carport design makes a statement. The frame and roofing were engineered to withstand harsh weather conditions with polycarbonate panels that block harmful UV rays and an aluminum frame built to last. The Arizona slope carport kit provides your family with an elegant cover that is sturdy, weather and rust-resistant, and maintenance free for many years to come.

  • Highly resistant, safe polycarbonate carport kit, a multi-functional outdoor structure designed for superior protection all year roun
  • Transmits natural sunlight while providing up to 100% protection from harmful UV sun rays
  • Lifetime resilient polycarbonate glazing; does not fracture, becomes brittle, or turns yellow over time
  • Sturdy, anti-rust aluminum carport offering ample shading
  • Specially engineered to withstand volatile weather conditions.
  • The two-post architecture allows easy access and parking while optimizing usable space.
  • Clean-lined, functional design
  • Aluminum carport maintenance-free, built to last thanks to outstandingly durable materials
  • Made with 100% recyclable materials
  • Technical information, including dimensions, panel thickness, and wind and snow load, can be found in the photo gallery above.
  • The Carports are available in various sizes. Click to find more Carport Kits.
Model: #703727

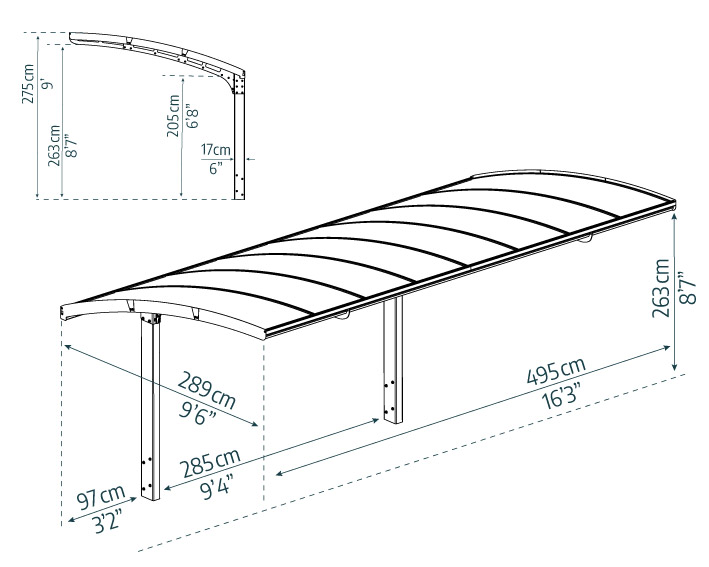

Dimensions

A Length 495cm 16'3"ft
B Width 289cm 9'6"ft
C Height 263cm 9"ft

Product Details

EV Charger

For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.

Built-in Gutters

2 Built-in gutters channel rainwater

Easy Access

Space-saving and easy-to-access carport, thanks to its 2-post structure

Rating and Reviews

4.7 (26 Reviews)
Rating Breakdown
0
0
0
9
17
Reviews with images
Post a review
Customer Reviews (26)
  1. EllaThom Country: United States (US)

    On time delivery

    The shipping was faster than I anticipated. Great to see such efficiency in delivery.
  2. Martha Country: United States (US)

    Beautiful, well built, eye-catching, strong

    I just had my contractor install this for me. It took two guys. The carport is beautiful. Talk about adding curb appeal. Very well built and I am happy to see that an EV charger can easily be put on the carport post. So happy with my decision to buy this. Thank you for the beautiful and clean design.
  3. JEFF Country: United States (US)

    The product is extremely well made.

    I am impressed with the quality of the materials. I just finished setting the base for the posts in their footings...that was a job!..the assembly should be very straight forward, the directions are easy to understand. I know I am going to love this when it’s done!! (Originally posted at "Homedepot.com")

FAQ

The polycarbonate roof panels can withstand temperatures up to 190 F.
Yes, this keeps the rain off without leaking.
Arcadia™ / Verona™ / Vitoria™ / Palma™ allow 15% light transmission. Arizona™ / Atlas™ allow 10% light transmission.
Yes, it certainly should withstand its impact and maintain its integrity. It will not shatter if an acorn hits it, having said that, it is not recommended to be built directly under a tree.
The carport needs to be properly installed on a concrete slab, concrete footings or deck. The base of the posts has to be anchored onto a solid base / footing and fastened with the foot pads kit. Yes, it is possible to mount on a deck. Please consult with a professional with regards to the appropriate bolts and screws and masonry anchors.
The posts length is 82.7 in. (210 cm)
It is not recommended to paint the polycarbonate panels, please refer to the warranty.
The carport needs to be anchored well and should be on cement footings.
Yes, the Arcadia’s panels are heat resistant, as long as you keep the grill at a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturers safety advise and keep a safe distance. The polycarbonate panels can withstand heat of over 180 degrees F. Make sure you keep a safe distance from the heat source, as per the manufacturer’s safety advise.

Assembly guide

Assembly instructions & Certificates for Downloads

Arizona Wave_10X16 / 3X5
Arizona Breeze_10X16 / 3X5

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site

2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Foundation

In order to assemble this product, it is essential to first dig 2 holes (pits) according to the instructions (for all surfaces). Use wooden beams (not supplied) to assist in leveling of the aluminum poles. Pour the concrete casting into the holes and and wait till dries before contiuing assembly



More details are available in Steps 1-7.





C
Dimensions

The Illustration describes center-to-center distance between poles.



Required for assembly (in addition to the previously depicted tools).

1. 8 wooden beams, minimum 6’ long (1.8 m)
2. Concrete
3. Digging equipment, compatible with the soil type and required measurements
