Capri 10 ft. x 18 ft. Patio Cover Kit - Grey Structure & Grey Twin Wall Panels

Structure color
Glazing
Model: #705601

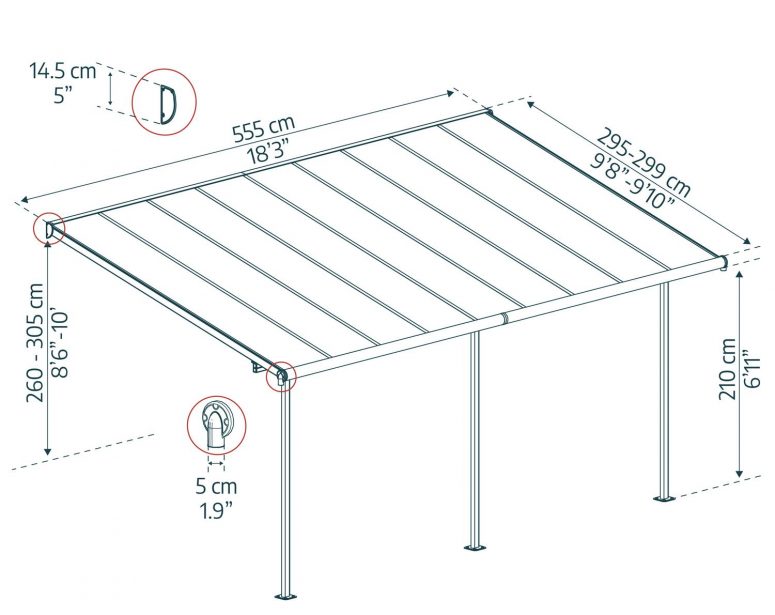

Dimensions

A Length 555cm 18'3"ft
B Width 295-299cm 9'8"-9'10"ft
C Height 260-305cm 8'6"-10'ft

Product Details

Anchoring

Requires a solid level surface and solid wall support, Anchoring included Secure the patio cover to the surface of your choosing to make the most of your sturdy structure, increase its stability and improve its weather resistance Sturdy, oval aluminum poles

Adjustable and flexible fixing method

The Capri is a high performance structure, with flexible positioning poles enabling you to set your required height at the wall connection, the distance from the house and between the poles at the front. Wall mounting plate is adjustable to meet your desired height between 260-305 cm (101.2 in. 120 in.); allowing a flexible positioning of the roof slope enabling snow and rain to slide off (A) Adjustable oval poles allow for ideal positioning: left to right 0-54 cm (0 in. 21.2 in.) and front to back 226-286 cm (89 in.  112.6 in.) (B + C)

Rating and Reviews

4.86 (0 Reviews)
Rating Breakdown
0
0
0
0
0
Post a review
Customer Reviews (0)

There are no reviews yet.

FAQ

The patio cover structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, we recommend consulting with a professional.
The sound of the rain makes a nice ambient sound, also depending on the rain’s strength. *The rain noise is not loud. It is actually quite soothing. Doesn’t bother anyone in this house at all, it’s just a little ping noise. Kind of like one of those rain sticks noise makers.
The posts and beams are paintable, please refer to the warranty.
The patio cover’s back beam is app’ 4.6 inches wide.
Yes, it can be mounted to truss ledger, as long as its structure is long, wide and strong enough. We suggest checking this out with a local expert / constructor.
Yes, the polycarbonate panels are high impact resistant and withstand hail.
Yes, it can be mounted on to vinyl sidings, make sure you mount it on to the wall studs and use suitable screws and plugs.
Yes, a grill may be used under the patio cover, as long as it is a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturer’s safety advice and keep a safe distance.
Up to two SideWalls can be attached to a patio cover, one on each end.
The patio cover can be installed on the ground; however, the posts must be anchored to concrete footings.

Assembly instructions & Certificates for Downloads

Foundation

A
Set a solid surface prior to assembly
Concrete / tiled floor & wall
Wooden surface (floor or wall)

Use the right screws on your surface

Concrete / tiled floor & wall
Wooden surface (floor or wall)

The screws and masonry anchors supplied with the kit are suitable for concrete / tiled floor & wall fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

B
Fit your patio cover dimensions to the site

Decide what height and distance from the wall
you would like to mount your patio cover. This
will determine the roof angle. Please note that
while the product appearance may change
slightly as a result of that angle, the snow load
weight does not change.


A - Wall mounting height

The wall mounting profile (top back) can be adjusted from 260 to 305 cm (102.4″ to 120″) measuring from the ground to fit your space.

B - Pole side positioning

The poles can be adjusted from 5 to 54 cm (2″ to 21.3″) from the side edges. Adjust poles after assembly and before anchoring.

C - Pole to wall depth

Poles distance from the wall can be adjusted from 226 to 286 cm (89″ to 112.5″) as illustrated in the Diagram.

C
Custom the number of poles required

In case of expected heavy snow load, install all supplied poles. In case of expected light or no snow load, 1 pole at the meeting point of two extensions is sufficient. (as shown as on page 2: AVAILABLE MODELS)

Heavy snow load expected
Light or no snow load expected
Important

We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
