Sophia XL 5 ft. x 19 ft. Door Awning Kit - Grey Structure & Clear Panels
Size
Preview in AR
Scan QR code for AR preview on your device
The Sophia redefines door awnings as you know them. A gorgeous gray aluminum frames a clear panel that is as resilient as it is attractive, upgrading the look and functionality of the outside of your home.
The Modern Door Cover can be seamlessly installed next to another one for extended coverage to protect your back patio, over your entryway, any windows or even over your garage door.
This ultra-resilient Porch Awning is easy to install and engineered to withstand harsh weather conditions so that you, your things, and your door are protected for years to come.
With the Sophia Door Awning, you get the protection you need in the look you desire.
- Modern Design: Complements modern/contemporary architecture to upgrade the look of your home
- Durable Structure: Anti-rust aluminum and galvanized sheet metal is engineered to withstand harsh weather conditions
- Year-Round Weather Resistance: Wind, snow, and hail resistant. Withstands winds up to 93 mph/ 150 km/hr and 37 lbs./ft² / 93 kg/m² of snow
- Strong Support: Comes with laser-cut, powder-coated and galvanized steel support arms
- Resilient Panels: Ultra-safe, high impact 4mm acrylic panels protect from the elements
- Protects Your Door: Screw-free glazing system prevents rain and dew from leaking through and blocks up to 100% of harmful UV rays to preserve your entryway from sun damage and wear
- Extendable Coverage: Multiple Sophia Awnings can be installed seamlessly side by side (can be used as a window awning, front door canopy, garage door canopy, or porch canopy)
- Light Transmission: Reduces direct sunlight without darkening your doorway (85% light transmission)
- Easy Installation: Smart locking system with pre-cut easy sliding panels for quick and secure installation
- Anchor Kit: Included kit is for brick and concrete. For other materials, please contact local contractor.
- Warranty: 3-Year Limited Warranty
Model: #707290

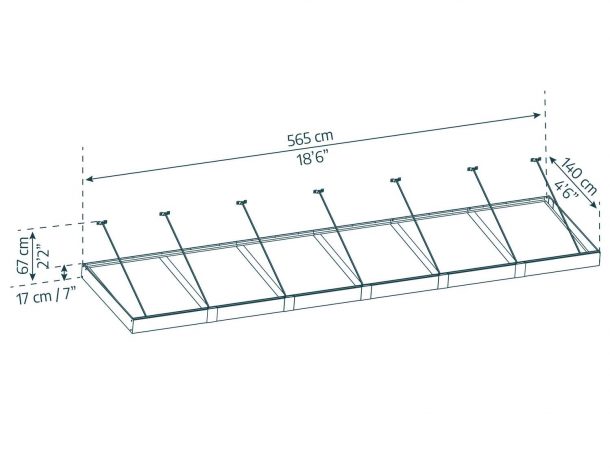

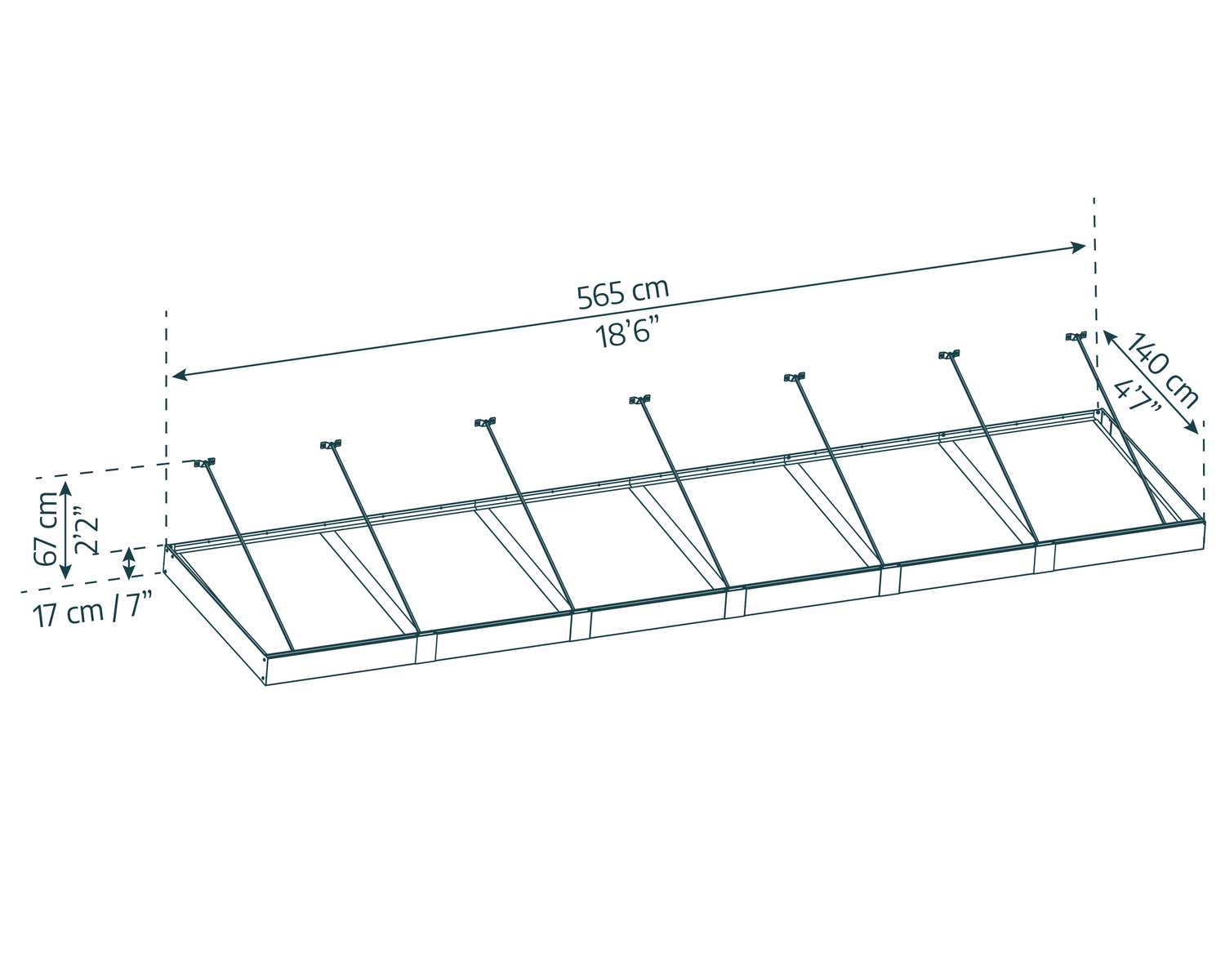

Dimensions
| A | Length | 565cm | 18'6"ft |
| B | Width | 140cm | 4'7"ft |
| C | Min Height | 17cm | 7"ft |
| D | Min Height | 67cm | 2'2"ft |
Product Details
Tight Seal
Hidden rubber gasket in the back seals canopy to the wall surface & prevents water seepage
Gutter
Front aluminum gutter directs rainwater sideways.
Panel and Frame
High impact, acrylic 4 mm panel is immune to harmful UV rays. Durable, powder coated galvanized steel support brackets in dark grey finish.FAQ
Yes, it is possible to install on a mobile home. Please use suitable screws and plugs to it to your mobile home, consult with a local expert / constructor.
Please make sure there is enough space above the door in order to install and easily open the door.
Yes, it can be mounted on a wood house. Please consult with an expert / constructor with regards to the type of screws and plugs you need for your specific wall type. (Screws and plugs for wood are not supplied).
It has to be sealed to the surface it is mounted onto, in order to prevent water seepage. It can be mounted onto a compatible (self-made) board that will provide a unified, solid space to mount the product onto. Make sure you secure it with suitable screws and plugs.
Yes, it is possible to install on vinyl sidings, make sure you used suitable screws and plugs for your wall type. A kit suitable for mounting on vinyl siding can be found online.
