Feria 10 ft. x 32 ft. Patio Cover Kit - Grey Structure & Clear Twin Wall Panels

Structure color
Glazing

Enjoy warm days, cool nights, and everything in between under the extra-wide Feria Patio Cover. The Feria Patio Cover Kit is an attractive, maintenance-free roofing solution for various outdoor uses such as a patio cover, sun lounge, and carport. Protect your valuables from unpredictable weather and harmful UV rays with this high-performance structure. It features flexible positioning poles which enable you to set your required height at the wall connection, the distance from the house and between the poles at the front. It was designed to be simply assembled by 2 people, using the Click N’ Lock roofing system for safe and simple assembly, preventing leaks. It requires no experience, no special skills, and no special tools. The Feria Patio Awning provides your family with an elegant, beautifully crafted, sturdy addition to your outside living space that is sturdy and rust-free for many years to come.

  • Safe ultra-durable, polycarbonate outdoor patio cover, and multi-functional outdoor structure, designed for superior protection all year-round
  • Provides up to 100% protection from harmful UV sun rays while transmitting natural sunlight
  • Life-time resilient polycarbonate glazing; does not fracture, becomes brittle, or turns yellow over time.
  • Proprietary screw-free roofing assembly system, specially developed to prevent rain/dew leaks
  • Stout, anti-rust aluminum structure, specially engineered to withstand harsh weather conditions.
  • Outdoor patio cover allows extended use of your backyard throughout the year.
  • Clean-lined, modern design
  • Friendly and safe DIY assembly structure
  • Maintenance-free, built-to-last thanks to outstandingly durable materials
  • Made with 100% recyclable materials
  • Technical information, including dimensions, panel thickness, and wind and snow load, can be found in the photo gallery above.
  • The Patio Covers are available in various sizes & colors. Click to find more patio cover kits.
Model: #702669

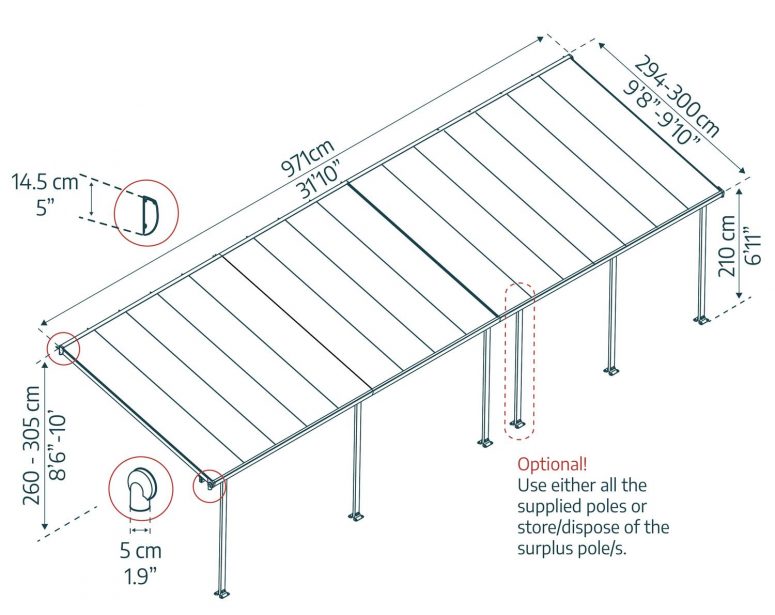

Dimensions

A Length 971cm 31'10"ft
B Width 294-300cm 9'8"-9'10"ft
C Height 260-305cm 8'6"-10'ft

Product Details

Gutter & Gutter Heads

Integrated gutter and adjustable gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

Anchoring

Anchoring included Secure the patio cover to the surface of your choosing to make the most of your sturdy structure, increase its stability and improve its weather resistance Sturdy 84 cm (3.15 in. x 1.57 in.) aluminum poles

Rating and Reviews

4.95 (42 Reviews)
Rating Breakdown
0
0
0
5
37
Reviews with images
Post a review
Customer Reviews (42)
  1. WACustomer Country: United States (US)

    Quality Patio, Designed with Precision

    "Palram Feria 10 ft. x 24 ft. White Patio Cover Awning When we decided to replace our stick built porch, we were looking for a kit that provided more head room, allowed light to pass through, versatile assembly due to our low install height and location of posts...Palram kits were a home run. --We have a deck off our patio...
  2. Mike Country: United States (US)

    Great design!

    Directions and assembly are simple and strait forward. It takes about 6 to 8 hours for two people. Wouldn't reccomend building patio cover in 95 degree plus temps. Only downside is it took 9 weeks to deliver. Most likely because of the Pandemic. Not sure? My wife and I Love It! We put it up yesterday. 07/11/20. (Originally posted at...
  3. Paul Country: United States (US)

    We put this awning on my 39ft destination travel trailer that is permanently situated and we love its modern look.

    Perfect protection from the sun and it still lets the light through enough that the interior is not too dark like with the old roll out vinyl awning. It took three of us a day and a half to complete the project. This Palram awning is well engineered and went together pretty easy. Definitely recommend this product. (Originally posted at...

FAQ

The patio cover structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, we recommend consulting with a professional.
The sound of the rain makes a nice ambient sound, also depending on the rain’s strength. *The rain noise is not loud. It is actually quite soothing. Doesn’t bother anyone in this house at all, it’s just a little ping noise. Kind of like one of those rain sticks noise makers.
The posts and beams are paintable, please refer to the warranty.
The patio cover’s back beam is app’ 4.6 inches wide.
Yes, it can be mounted to truss ledger, as long as its structure is long, wide and strong enough. We suggest checking this out with a local expert / constructor.
Yes, the polycarbonate panels are high impact resistant and withstand hail.
Yes, it can be mounted on to vinyl sidings, make sure you mount it on to the wall studs and use suitable screws and plugs.
Yes, a grill may be used under the patio cover, as long as it is a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturer’s safety advice and keep a safe distance.
Up to two SideWalls can be attached to a patio cover, one on each end.
The patio cover can be installed on the ground; however, the posts must be anchored to concrete footings.

Assembly guide

Assembly instructions & Certificates for Downloads

Foundation

A
Set a solid surface prior to assembly
Concrete / tiled floor & wall
Wooden surface (floor or wall)

Use the right screws on your surface

Concrete / tiled floor & wall
Wooden surface (floor or wall)

The screws and masonry anchors supplied with the kit are suitable for concrete / tiled floor & wall fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

B
Fit your patio cover dimensions to the site

Decide what height and distance from the wall
you would like to mount your patio cover. This
will determine the roof angle. Please note that
while the product appearance may change
slightly as a result of that angle, the snow load
weight does not change.


A - Wall mounting height

The wall mounting profile (top back) can be adjusted from 260 to 305 cm (102.4″ to 120″) measuring from the ground to fit your space.

B - Pole side positioning

The poles can be adjusted from 5 to 54 cm (2″ to 21.3″) from the side edges. Adjust poles after assembly and before anchoring.

C - Pole to wall depth

Poles distance from the wall can be adjusted from 226 to 286 cm (89″ to 112.5″) as illustrated in the Diagram.

C
Custom the number of poles required

In case of expected heavy snow load, install all supplied poles. In case of expected light or no snow load, 1 pole at the meeting point of two extensions is sufficient. (as shown as on page 2: AVAILABLE MODELS)

Heavy snow load expected
Light or no snow load expected
Important

We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
