Garda 17 ft. x. 20 ft. Enclosed Gazebo Kit - Grey Structure & Hybrid Panels (248.4 sq. ft.)

Size

Preview in 3D

Preview in AR

Scan QR code for AR preview on your device
Requires compatible Apple iOS 13 or Android with ARCore 1.9+
Structure color
Glazing

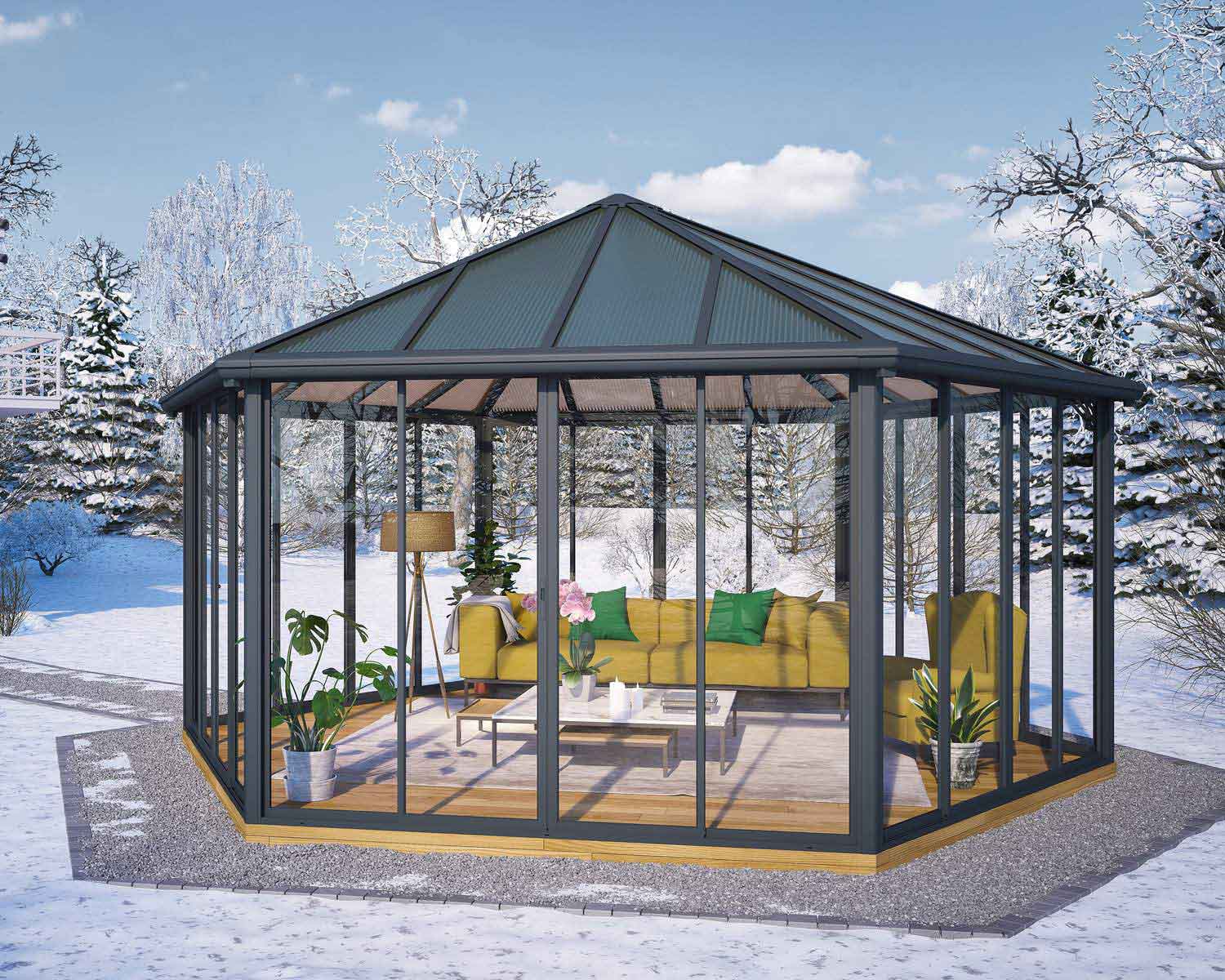

More space means more time spent outside with your favorite people (even if that means spending some quality time with yourself). The Garda is an extra-large enclosed gazebo to immerse yourself in the beauty of the outdoors from the comfort of the indoors. With a sliding door on each one of the six sides, the option to add screen door kits for every door, and effective heat retention, this garden structure is designed as a spacious outdoor room for every season, no matter the weather.

Supplied as an all-inclusive kit, the DIY gazebo can be used for indoor/outdoor dining, a beautiful place to hold your parties, a man cave, or as your very own private outdoor spa as a hot tub enclosure. In one weekend, you can add value to your home and still have plenty of time to sit back and enjoy your beautiful new solarium.

  • Virtually unbreakable, 16 mm multi-wall polycarbonate roof panels
  • Treated bronze tinted glazing -transmits natural sunlight on overcast cloudy days yet provides sufficient shading
  • Panels maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture, or become brittle over time
  • High impact, crystal-clear acrylic wall panels, naturally resistant to harmful UV rays
  • The high impact, the transparent acrylic wall system is resilient, easy to clean, maintains high light transmission, and perfectly integrates with any home design and outdoor environment
  • Granulated anthracite powder-coated frame is made of heavy-duty aluminum profiles and laser cut galvanized steel connectors
  • Provides a highly durable, rust resistant& extra-rigid structure
  • Simple 2 person DIY assembly –sliding panels’ assembly system, ready to assemble pre-cut panelsandpre-drilled profiles; all screws included
  • Six wide double sliding pre-assembled doors, for ideal airflow and passage
  • Lockable doors -lock with a master key
  • Elegant top vent detail allows airflow and smoke relief

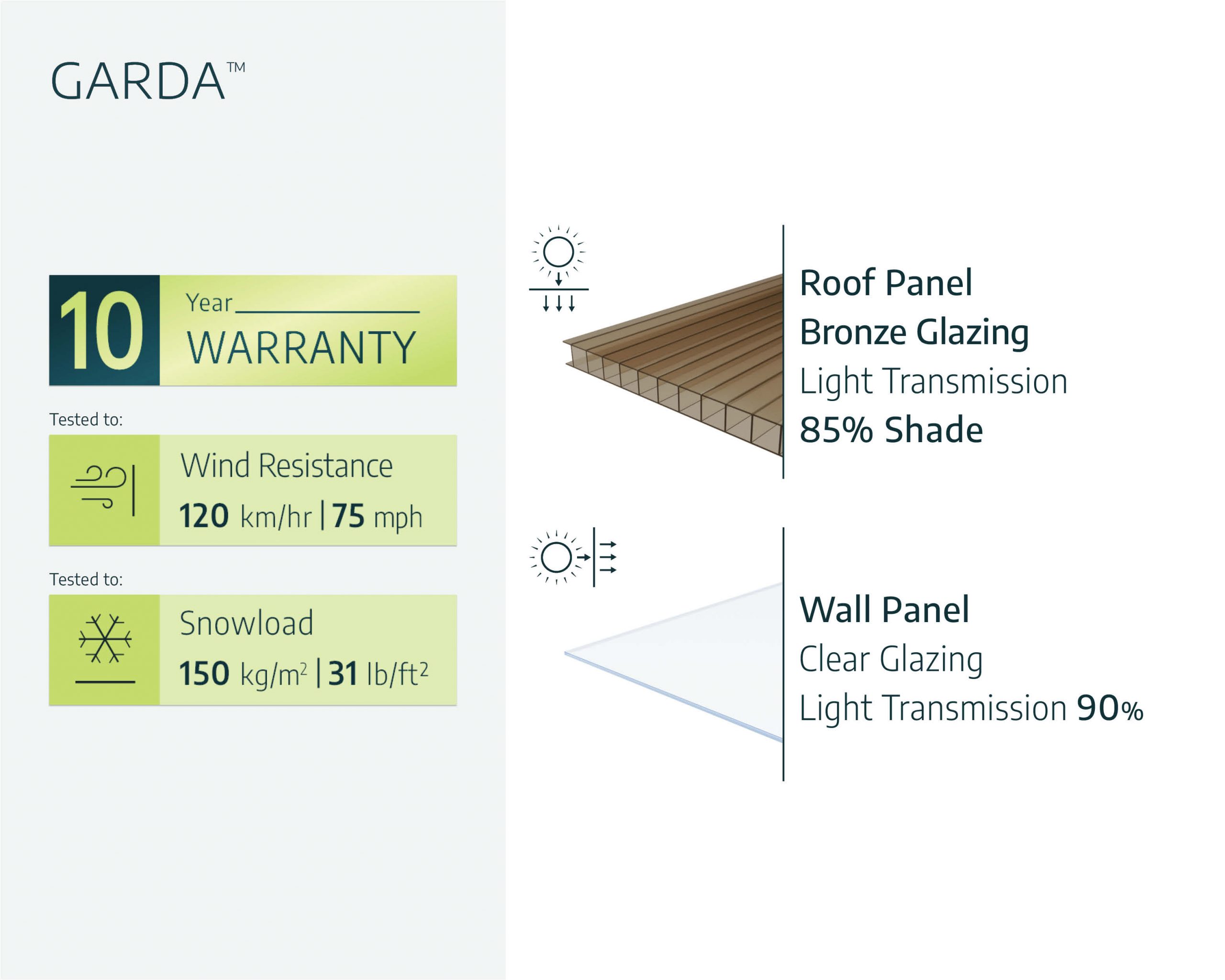

  • Technical information, including dimensions, panel thickness, and wind and snow load, can be found in the photo gallery above.
  • Built-in gutter system for water drainage & collection
Model: #704467

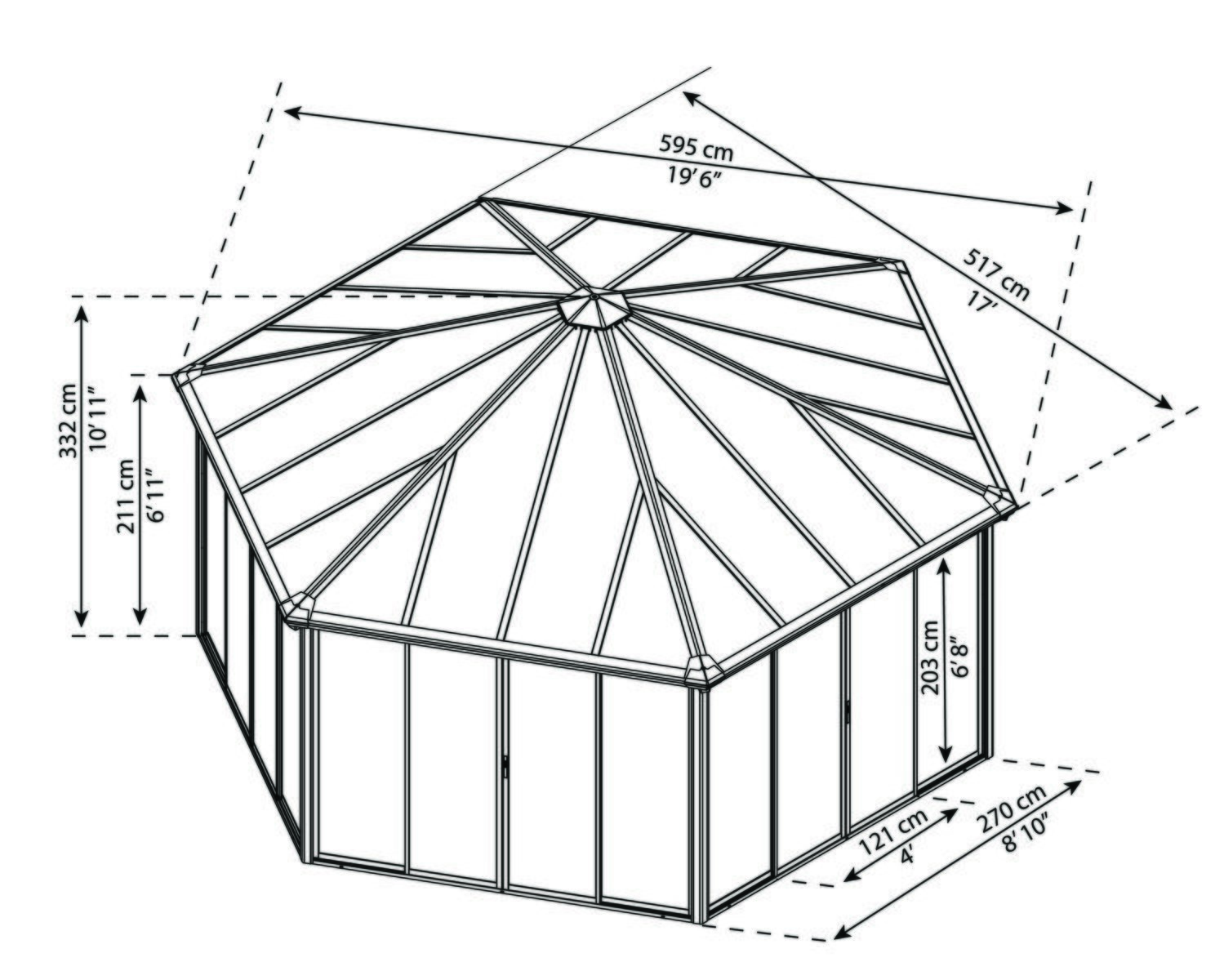

Dimensions

A Length 595cm 19'6"ft
B Width 517cm 17'ft
C Height 332cm 10'11"ft
D Door width 121cm 4'ft

Product Details

Accessories Screen Door Kit White

Enclosed Gazebo Accessories

Check out our certified Canopia accessories

Gutter & Gutter Heads

Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

Aluminum Structure

Granulated anthracite powder-coated frame is made of heavy duty aluminum profiles and laser cut galvanized steel connectors Provides a highly durable, rust resistant & extra rigid structure Ready to assemble pre-drilled profiles Simple 2 person DIY assembly sliding panels assembly system, ready to assemble pre-drilled profiles; all screws included

Rating and Reviews

4.52 (48 Reviews)
Rating Breakdown
0
0
1
21
26
Post a review
Customer Reviews (48)
  1. Mia96 Country: United States (US)

    High quality product

    High quality product
  2. TerraTalesWeaver Country: United States (US)

    Aesthetic Appeal

    a stunning addition to our outdoor space
  3. GreenThumbArt11 Country: United States (US)

    The Garda Challenge

    Assembly took the 3 of us about 12 hours, many unclear parts on the manual but overall happy with the outcome

FAQ

It is necessary to have it anchored as per the instructions, Anchoring this product to the ground is essential to its stability and rigidity. It is required to complete this stage in order for your warranty to be valid.
Yes, you can definitely use a heater inside the closed gazebo. Make sure you follow the manufacturer’s safety instructions. Using a heater will allow retention of heat, a suitable heater by Canopia can be found online.
Yes, the Sun Room’s door can be placed on either side. There are no available screens for the Sun Room. The door swings outward.
No, it is not an option, it cannot be performed.
Yes, it can be anchored to concrete. Base or foundation must be flattened, leveled and prepped prior to installing the product. The product must be built on a solid level surface in order to perform properly. We recommend using concrete or wood deck as base. In addition, It is imperative that the ground surface be perfectly flat and leveled and in a 90° angle to the supporting wall.
The structure can support a ceiling fan hanging from it, it can be installed using the beam’s built-in tracks. Please make sure you install the fan and the wiring in a secure way, you may consult with a handyman as to how to attach it to the top.
I am assuming you are referring to a stationary RV. If this is the case, you need to make sure the RV’s size is suitable to the requirements. You will need to find the compatible screws and plugs in order to attach the SanRemo to the RV. In addition the SanRemo requires a solid foundation such as concrete, asphalt etc. and the back is supposed to be attached to a structure wall (such as a house’s wall). Should you attach it to a vehicle; the lower part (where the wheels are) will remain open.
The SanRemo can be installed on a deck and attached to a house with vinyl sidings. Please consult with an expert / constructor with regards to the screws and plugs you should use for your specific wall type and trex deck.
There are screen doors that can be added (to be purchased separately) and these can be installed without removing the existing doors.
Yes, the polycarbonate panels are high impact resistant and withstand hail.

Assembly guide

Assembly instructions & Certificates for Downloads

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site

2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).



Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.





a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt




a + b + c – 40 cm / 1’4″
