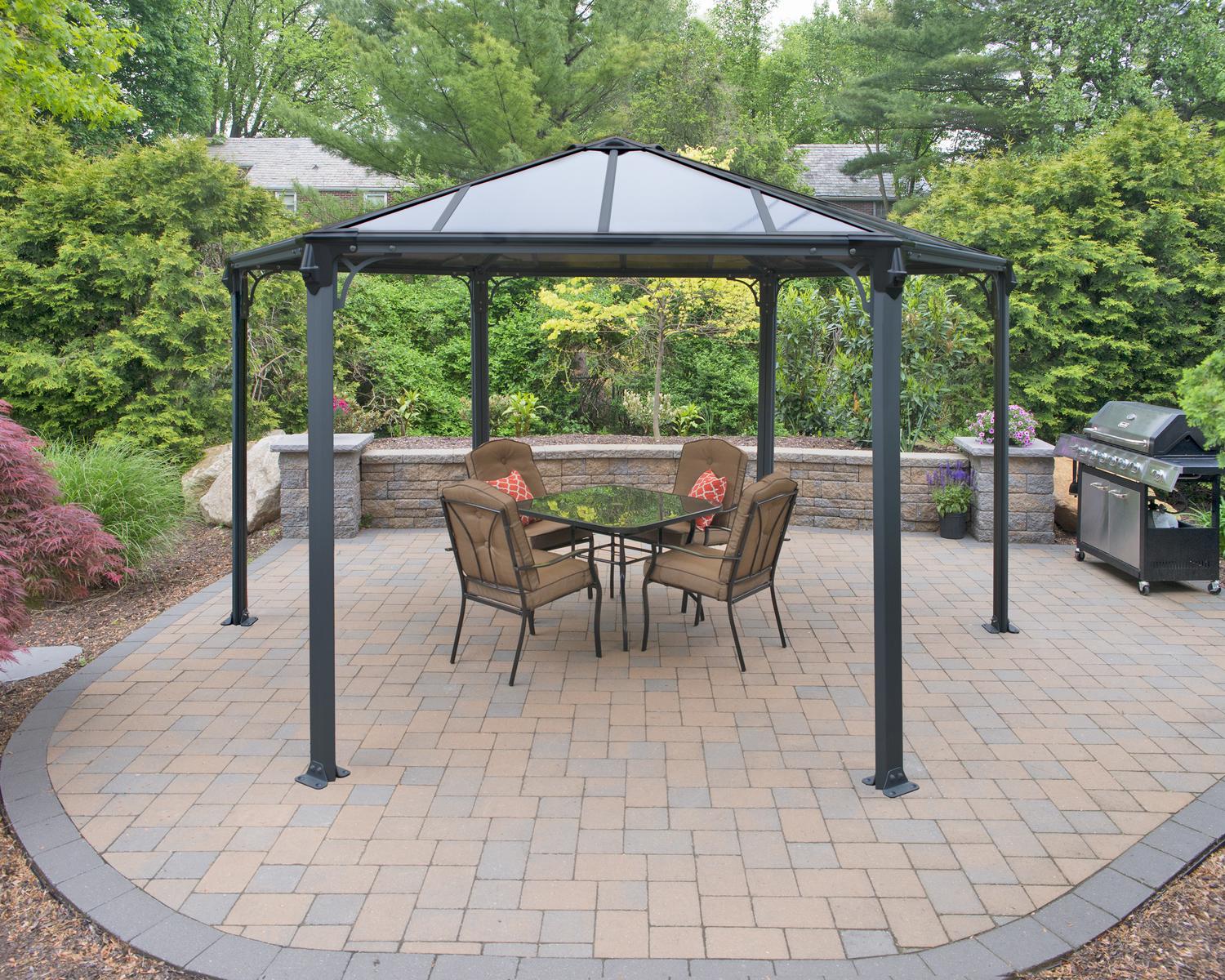

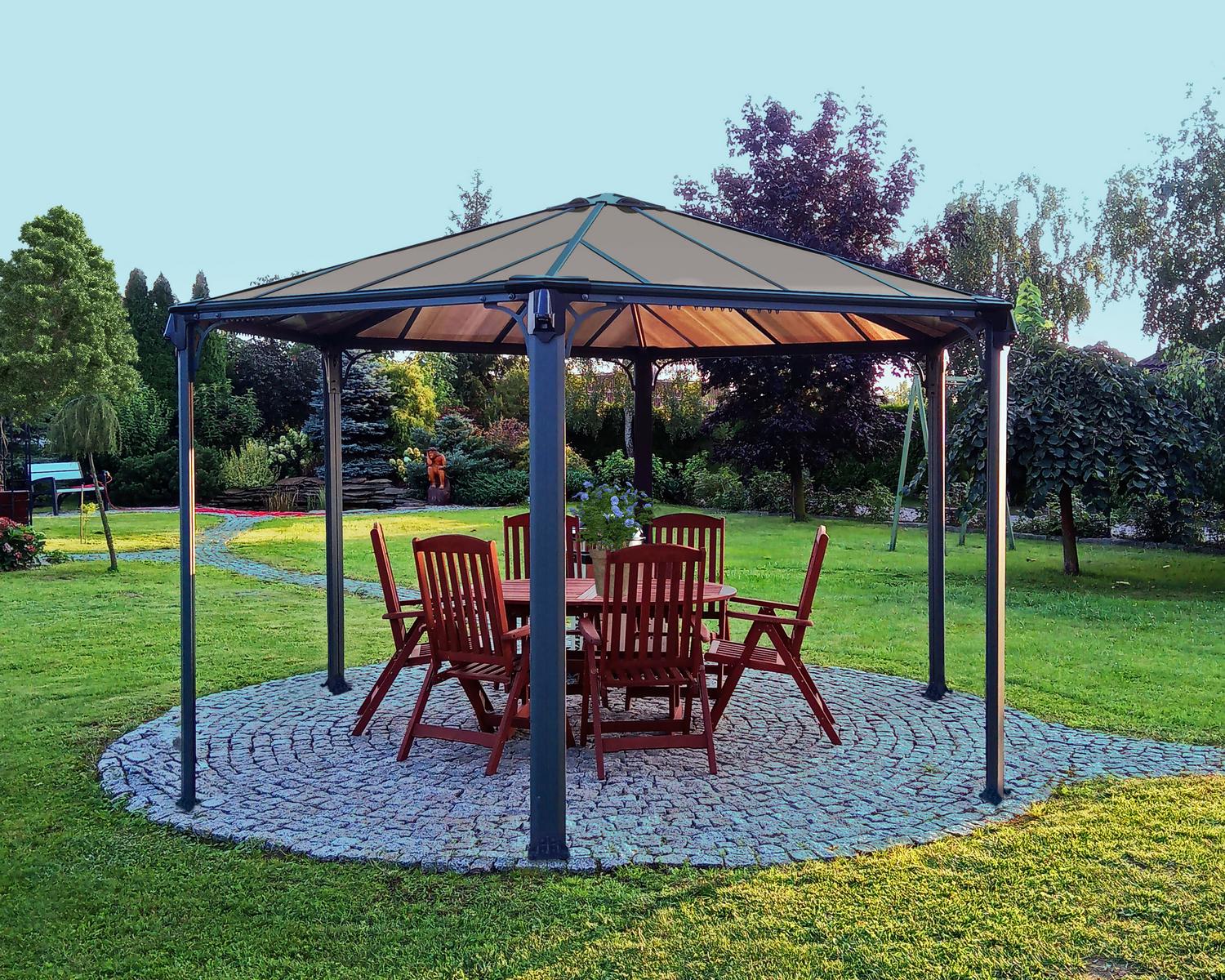

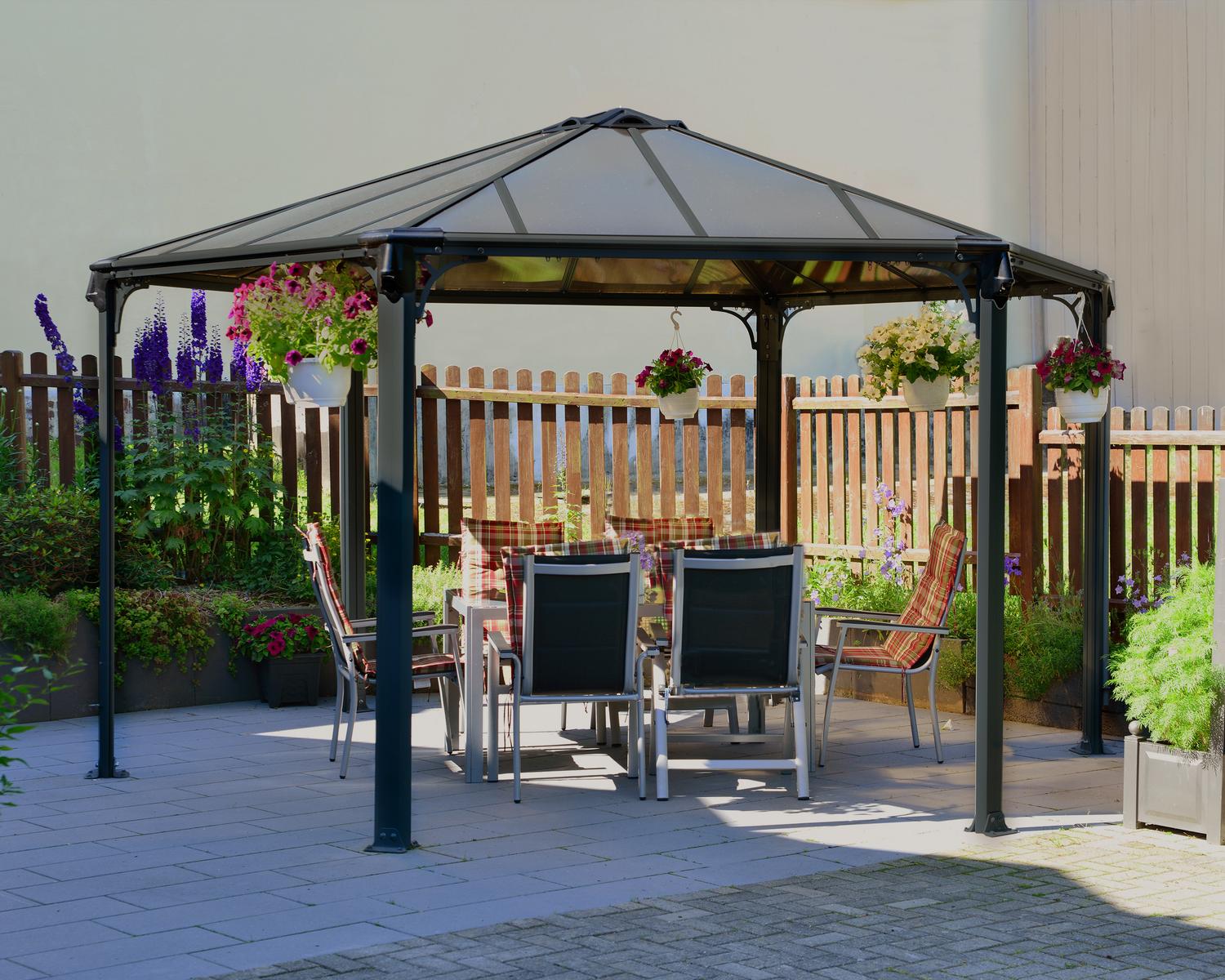

Monaco 13 ft. x 15 ft. Gazebo Kit - Grey Structure (139.7 sq. ft.)

Preview in 3D

Preview in AR

Scan QR code for AR preview on your device
Requires compatible Apple iOS 13 or Android with ARCore 1.9+
Structure color
Model: #702563

Dimensions

A Length 450cm 14'9"ft
B Width 390cm 12'9"ft
C Height 289.5cm 9'6"ft

Product Details

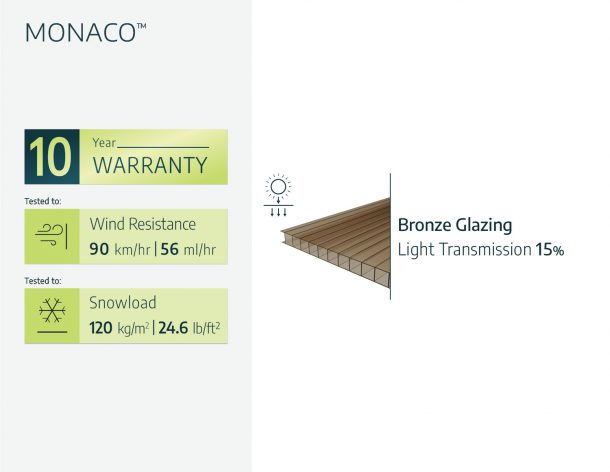

Polycarbonate roof panels

Virtually unbreakable 6 mm twin-wall polycarbonate roof panels are high impact and shatter resistant Treated bronze glazing Transmits natural sunlight on overcast cloudy days yet provides sufficient shading Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture or become brittle over time ready to assemble pre-cut panels Sliding panels assembly system

Ventilation

Decorative wind & smoke escarpment feature at the top of the gazebo for enhanced air flow

Rating and Reviews

4.41 (62 Reviews)
Rating Breakdown
0
0
8
22
32
Post a review
Customer Reviews (62)
  1. Green Ambiance Artisan Country: United States (US)

    Design and practicality

    I liked the design of the gazebo, a special shape that gives a special feeling and a pleasant atmosphere
  2. Sustainable Storyteller Country: United States (US)

    We made it big time

    The assembly chronicles with a happy twist
  3. Crafty Wilderness Wanderer Country: United States (US)

    The little engine that could (and did)

    Had little faith, but succeeded in the end

FAQ

The Martinique / Milano / Monaco / Palermo / Roma gazebo series do not have 2 different tracks, therefore cannot be installed together.
The gazebo can be set up on grass / dirt, however there should be concrete footings to attach the poles to.
There is a slight slope in order to make sure that water will runoff.
The gazebo’s structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, you may consult with a handyman as to how to attach it to the top.
Yes, you can use a small propane fire pit under the Garden Gazebo. Please make sure you follow the manufacturers’ safety advice and keep a safe distance.
Yes, it is recommended to anchor it to concrete / concrete slab.
A spray may compromise the polycarbonate’s integrity, it is not recommended to paint the panels. Please refer to the warranty.

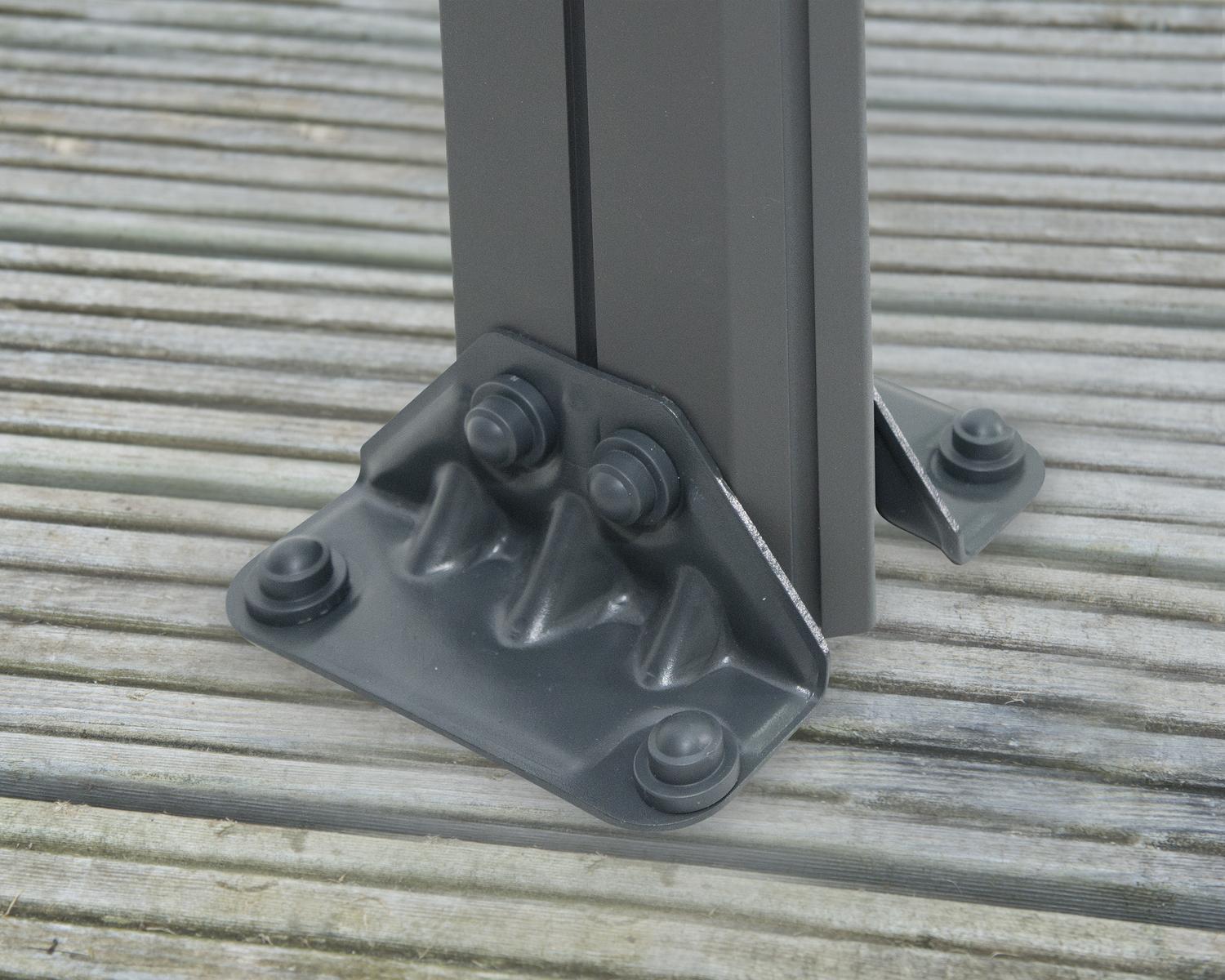

Yes, this gazebo must be anchored. It comes with an anchoring and foot pads kit.
Yes, the polycarbonate panels can definitely stay on during winter season. There’s no need to remove the panels.

Assembly instructions & Certificates for Downloads

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site

2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).



Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.





a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt




a + b + c – 40 cm / 1’4″

C
Dimensions



The Illustration describes center-to-center distance between poles.
