Gazebo Kit Monaco 13 ft. x 15 ft.

Size
Structure color

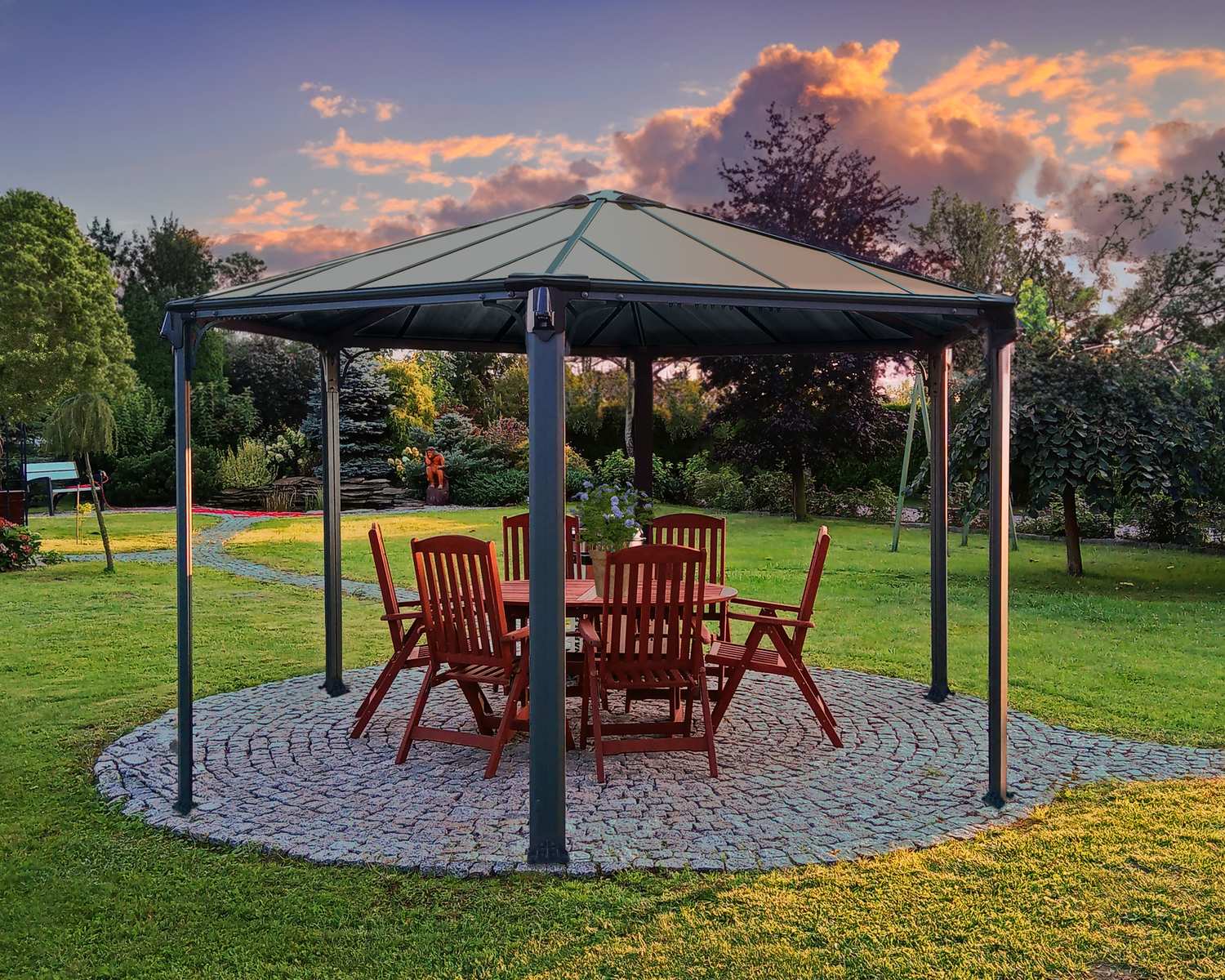

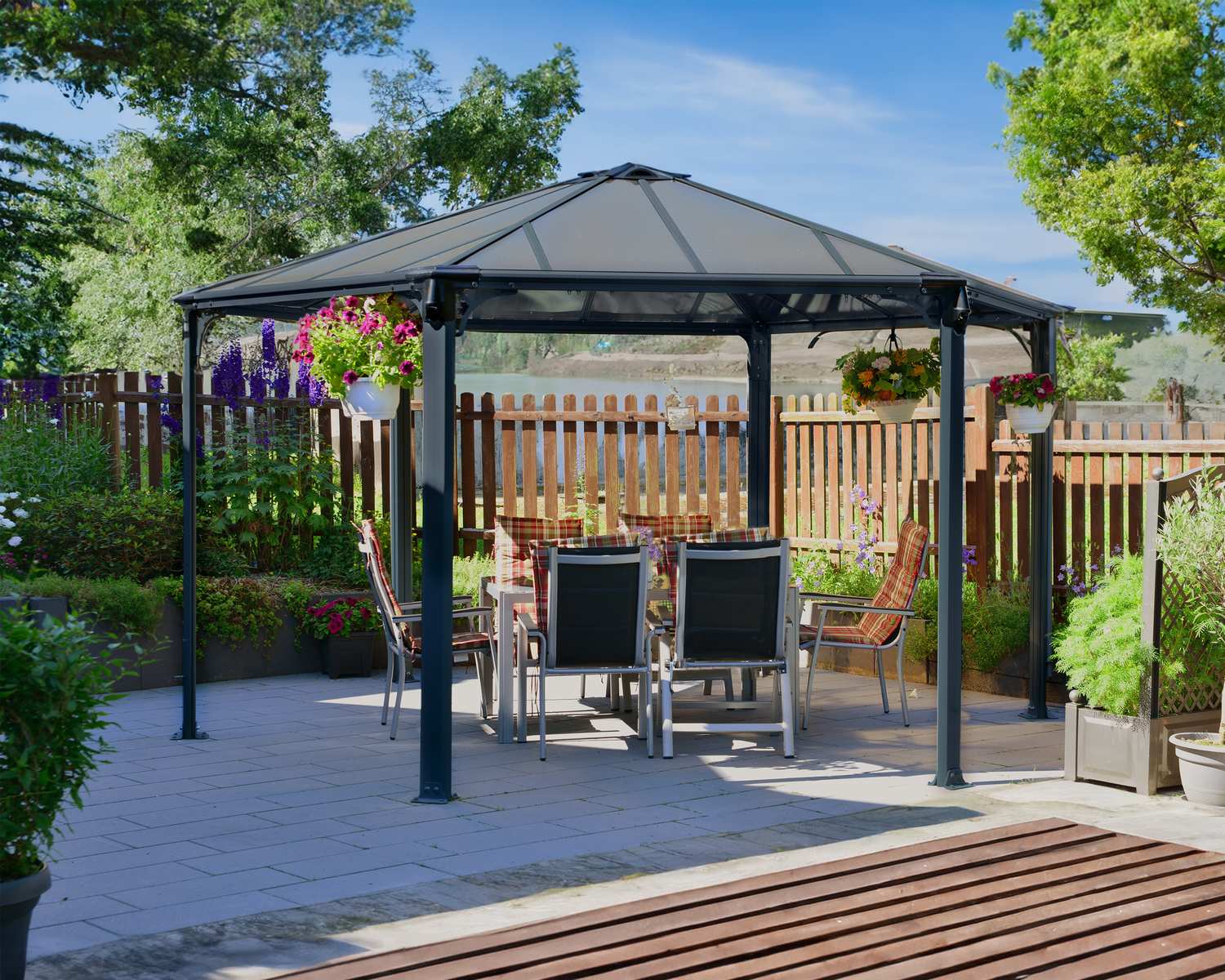

Transform your yard with the elegant Monaco Garden Gazebo. The hexagonal gazebo design delivers romance and function to your space, year-round. Comprised of an aluminum frame and bronze tinted 6mm twin-wall polycarbonate panels, you get a beautiful structure that protects you and your things from harmful UV rays, hail, and snow. Use it to create your own oasis to unwind at the end of a long day, add curtains and enjoy a private spa experience as a hot tub gazebo, host a BBQ with your nearest and dearest with netting available to keep out insects, or have a romantic dinner for two. Get the Monaco Gazebo today and have the outdoor space you’ve always wanted.

  •  Unique screw-free roofing system
  • Robust structure-reinforced design with durable and corrosion resistant anthracite powder coated finish aluminum profiles and galvanized steel connectors

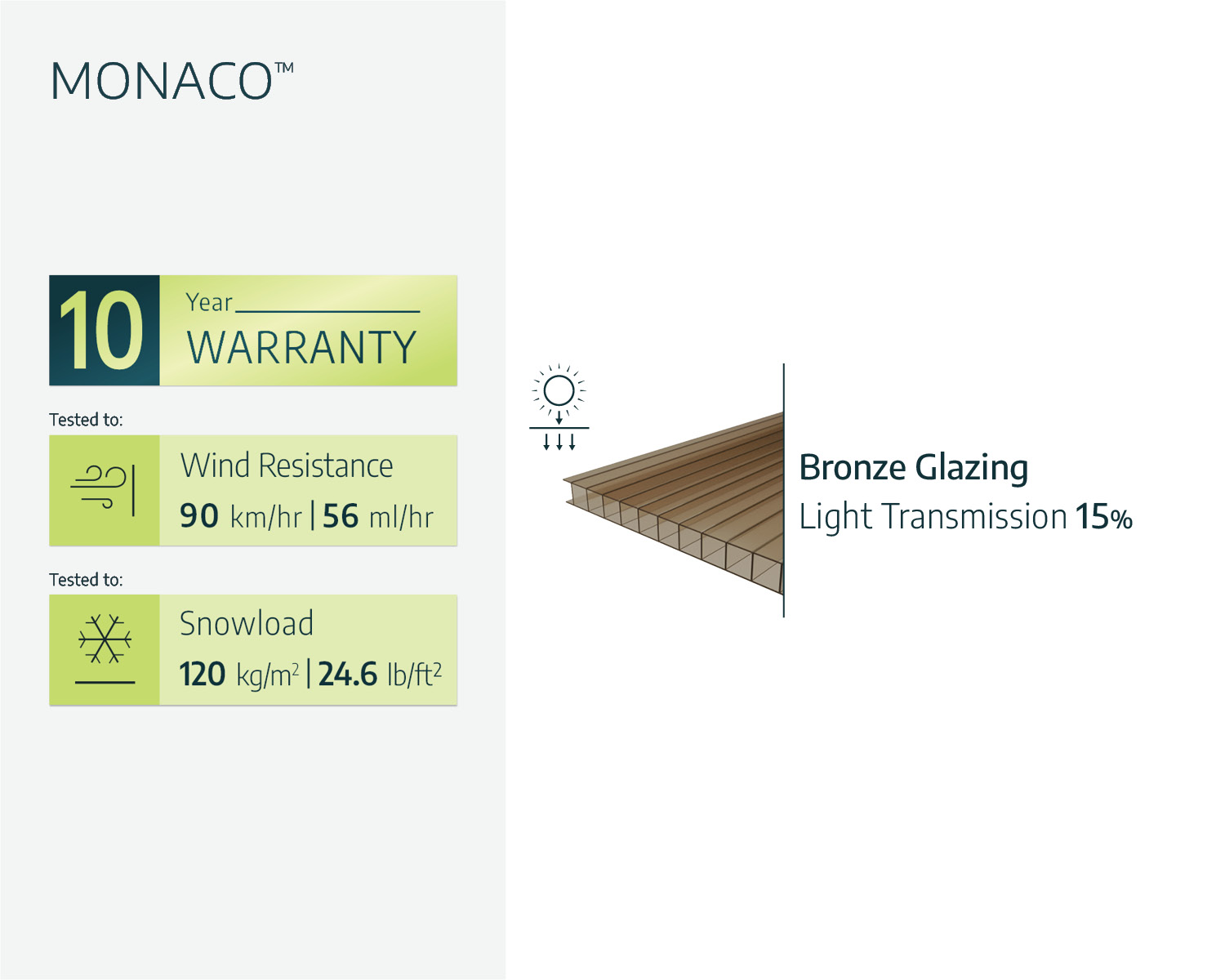

  • Virtually unbreakable, 100% UV protected 6 mm twin-wall polycarbonate panels -protect from harmful UV rays, hail, and snow
  • Treated unique bronze glazing-transmits natural sunlight on overcast cloudy days and provides sufficient shading for hot sunny days
  • Integrated gutter and gutter heads -allow water collection
  • Withstands severe weather conditions-no need to remove panels during the winter season
  • Simple 2 person DIY assembly -ready to assemble pre-drilled profiles, pre-cut panels; all screws included
  • The hexagonal structure can be relocated and re-anchored
  • Elegant top vent detail allows air flow and smoke relief
  • Maintenance-free design
  • The Gazebos are available in various sizes. Click to find more Gazebo kits.

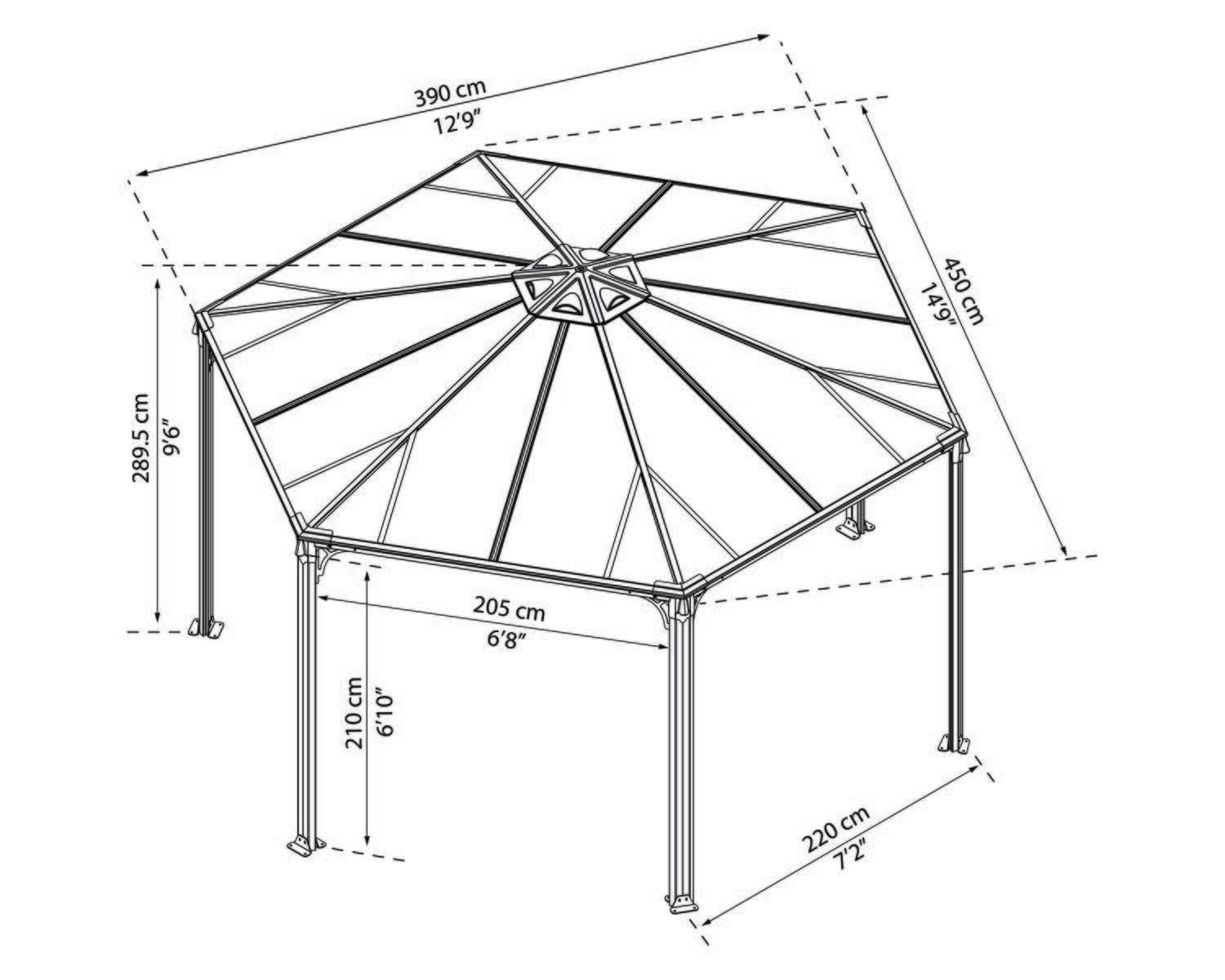

Dimensions

A Length 450cm 14'9"ft
B Width 390cm 12'9"ft
C Height 289.5cm 9'6"ft

Product Details

Polycarbonate roof panels (MONACO)

Virtually unbreakable 6 mm twin-wall polycarbonate roof panels are high impact and shatter resistant Treated bronze glazing Transmits natural sunlight on overcast cloudy days yet provides sufficient shading Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture or become brittle over time ready to assemble pre-cut panels Sliding panels assembly system

Ventilation (MONACO)

Decorative wind & smoke escarpment feature at the top of the gazebo for enhanced air flow

FAQ

The Martinique / Milano / Monaco / Palermo / Roma gazebo series do not have 2 different tracks, therefore cannot be installed together.
The gazebo can be set up on grass / dirt, however there should be concrete footings to attach the poles to.
There is a slight slope in order to make sure that water will runoff.
Yes, the Gazebo is UV resistant, and has gutters and gutter outlets to channel and allow rainwater collection.
The gazebo’s structure can support a ceiling fan hanging from it. Please make sure you install the fan and the wiring in a secure way, you may consult with a handyman as to how to attach it to the top.
Yes, you can use a small propane fire pit under the Garden Gazebo. Please make sure you follow the manufacturers’ safety advice and keep a safe distance.
Yes, it is recommended to anchor it to concrete / concrete slab.
A spray may compromise the polycarbonate’s integrity, it is not recommended to paint the panels. Please refer to the warranty.
Yes, this gazebo must be anchored. It comes with an anchoring and foot pads kit.
Yes, the polycarbonate panels can definitely stay on during winter season. There’s no need to remove the panels.

Assembly instructions for Downloads

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site
1
2
2 - Level the ground
3
4
Important

We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.

B
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

Group 7793@2x
Group 8332@2x
Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.

Group 7798@2x
Group 7799@2x
Group 7800@2x
Option 3: Solid ground / Asphalt

a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt
Group 8497@2x
Group 8496@2x
Group 8495@2x

a + b + c – 40 cm / 1’4″

C
Dimensions
Group 8533

The Illustration describes center-to-center distance between poles.

Group 8548
