Vitoria 10 ft. 17 ft. Carport Kit - Grey Structure & Twin Wall Panels

Size

Preview in 3D

Preview in AR

Scan QR code for AR preview on your device
Requires compatible Apple iOS 13 or Android with ARCore 1.9+
Structure color
Glazing

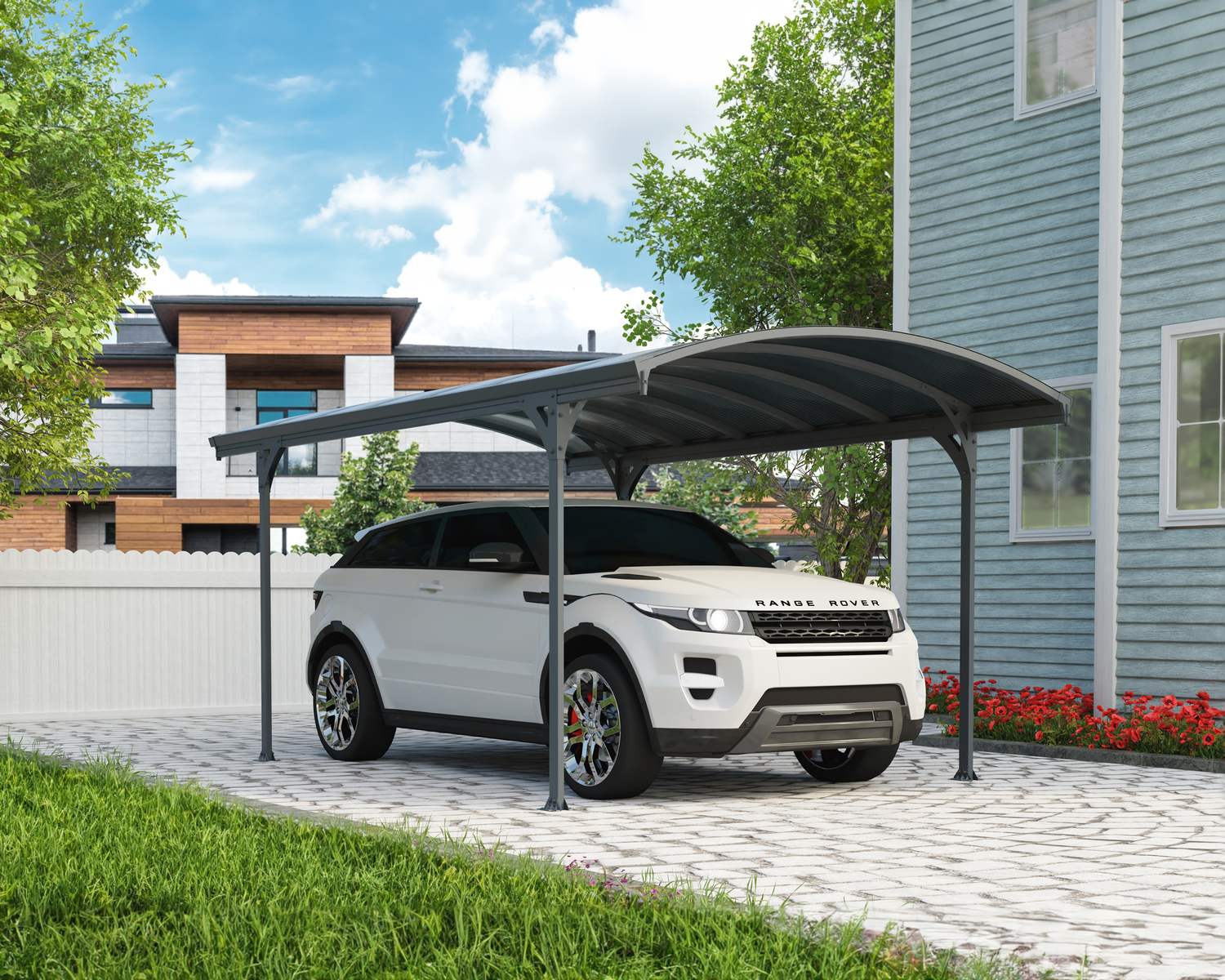

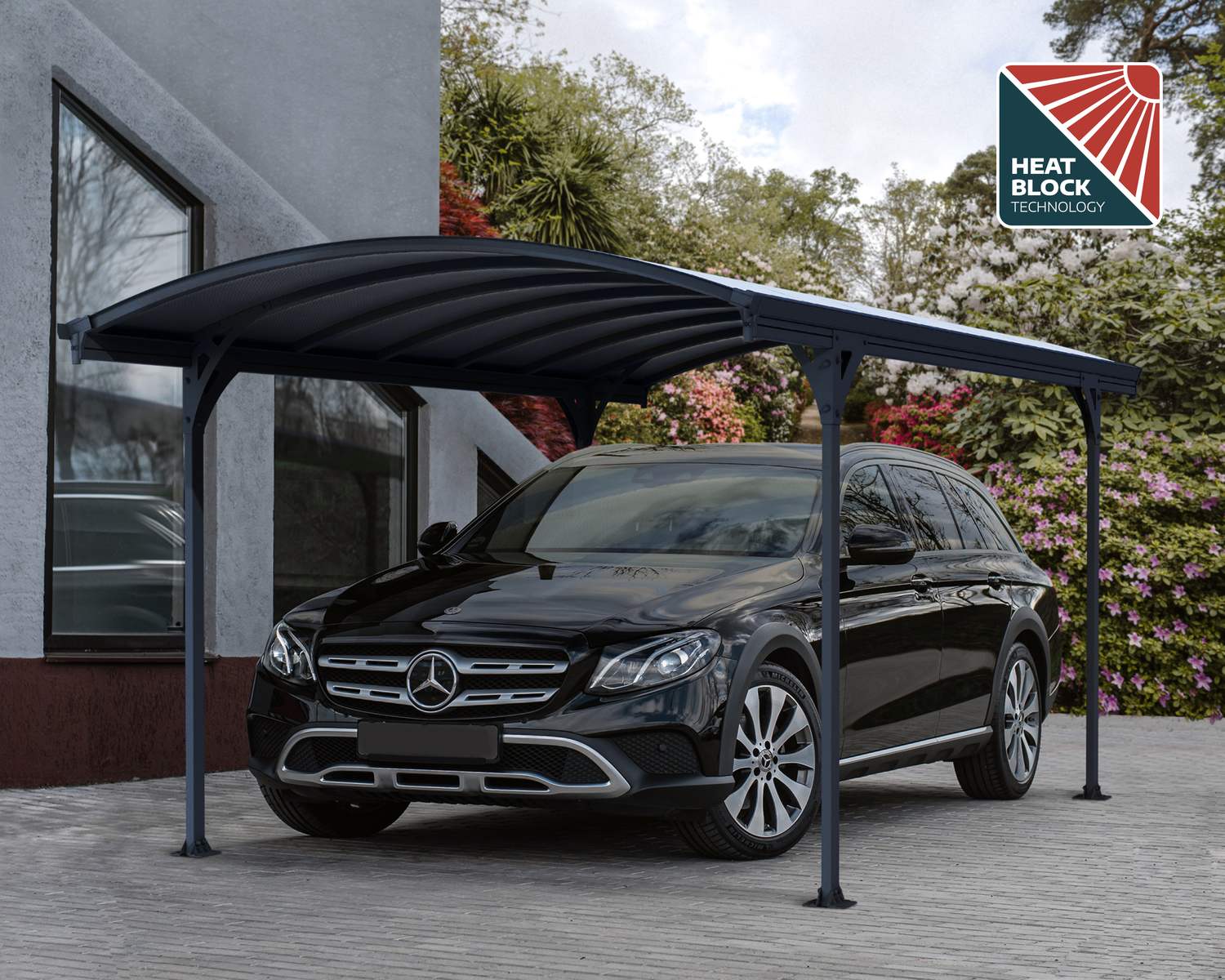

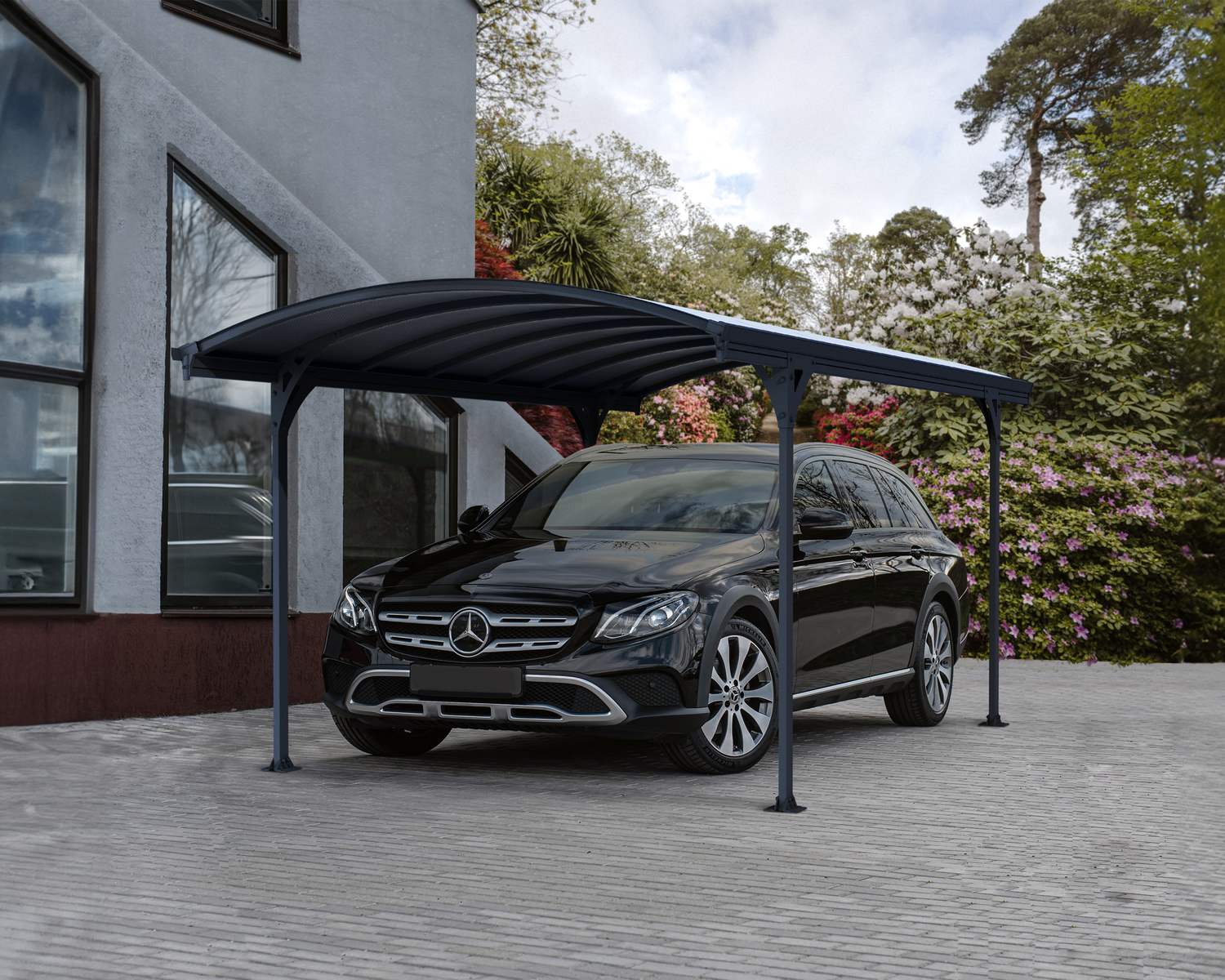

Make the most out of your space with the elegant Vitoria Carport. Designed to protect your vehicle or enjoyed as a patio cover, the curved roof looks good wherever you put it. With over 9 feet of entry width and 7 ½ feet of overhead clearance, the Vitoria gives you plenty of room to park and walk around your vehicle. This sturdy single carport also boasts a snow load capacity of up to 20 lbs./ft². This single carport is engineered with the option to be relocated and reassembled if necessary. Other features include a gutter to direct rainwater, high impact twin-wall polycarbonate roof panels and an aluminum rust-resistant frame. Extend the life of your vehicle and enjoy more time outdoors with the Victoria Carport Kit.

  • Highly resistant, safe polycarbonate carport kit, multi-purpose structure, designed for the superior protection of your car all year round
  • Transmits natural sunlight while providing up to 100% protection from harmful UV sun rays
  • Lifetime resilient polycarbonate glazing; does not fracture, becomes brittle, or turns yellow over time.
  • Sturdy, metal carport kit anti-rust offering ample shading
  • Specially engineered to withstand harsh weather conditions.
  • The four-post architecture eases access and car parking.
  • Clean-lined, functional design
  • Carport kits maintenance-free, built to last thanks to outstandingly durable materials
  • Made with 100% recyclable materials

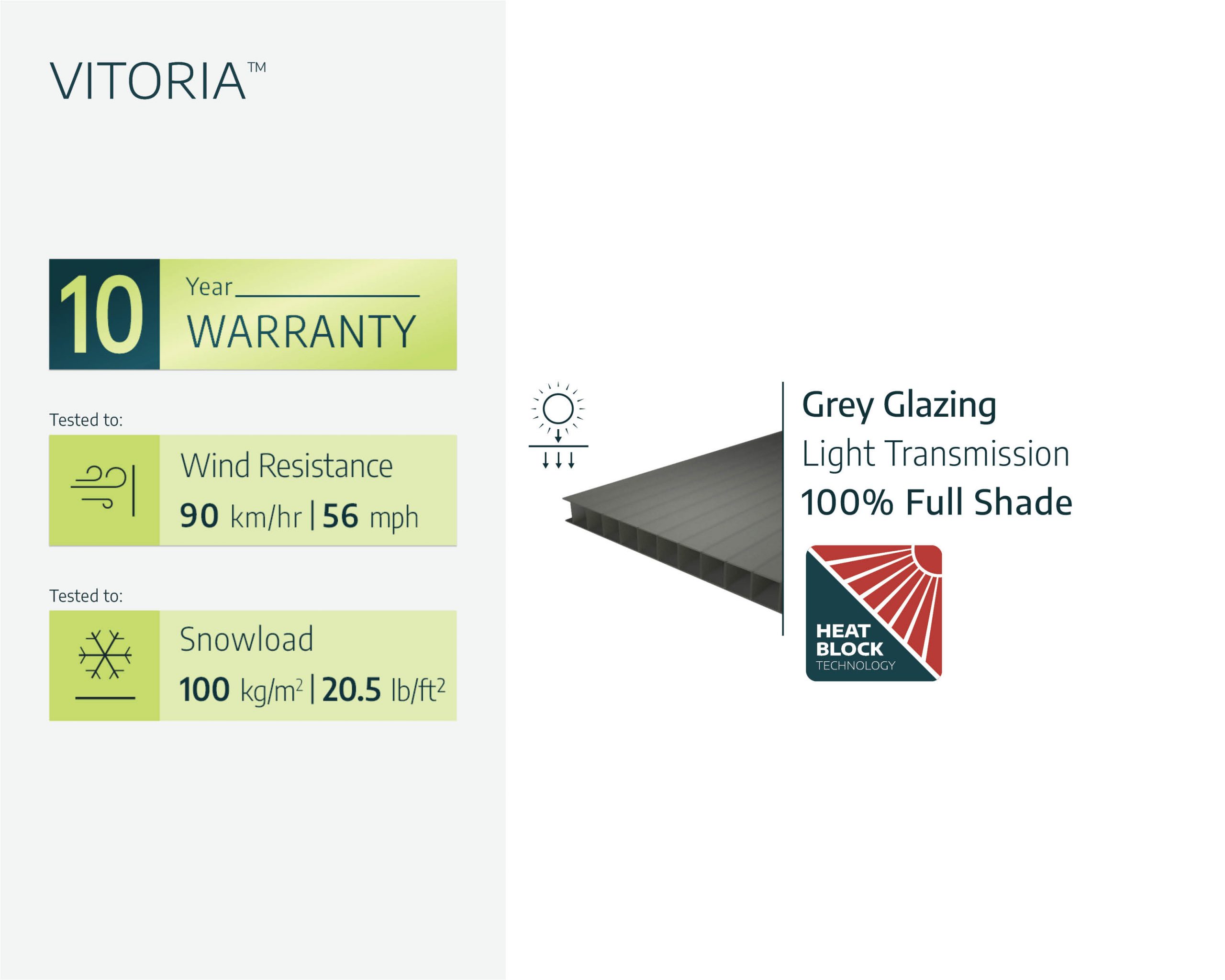

  • Technical information, including dimensions, panel thickness, and wind and snow load, can be found in the photo gallery above.
  • The Carports are available in various sizes. Click to find more Carport Kits
Model: #702348

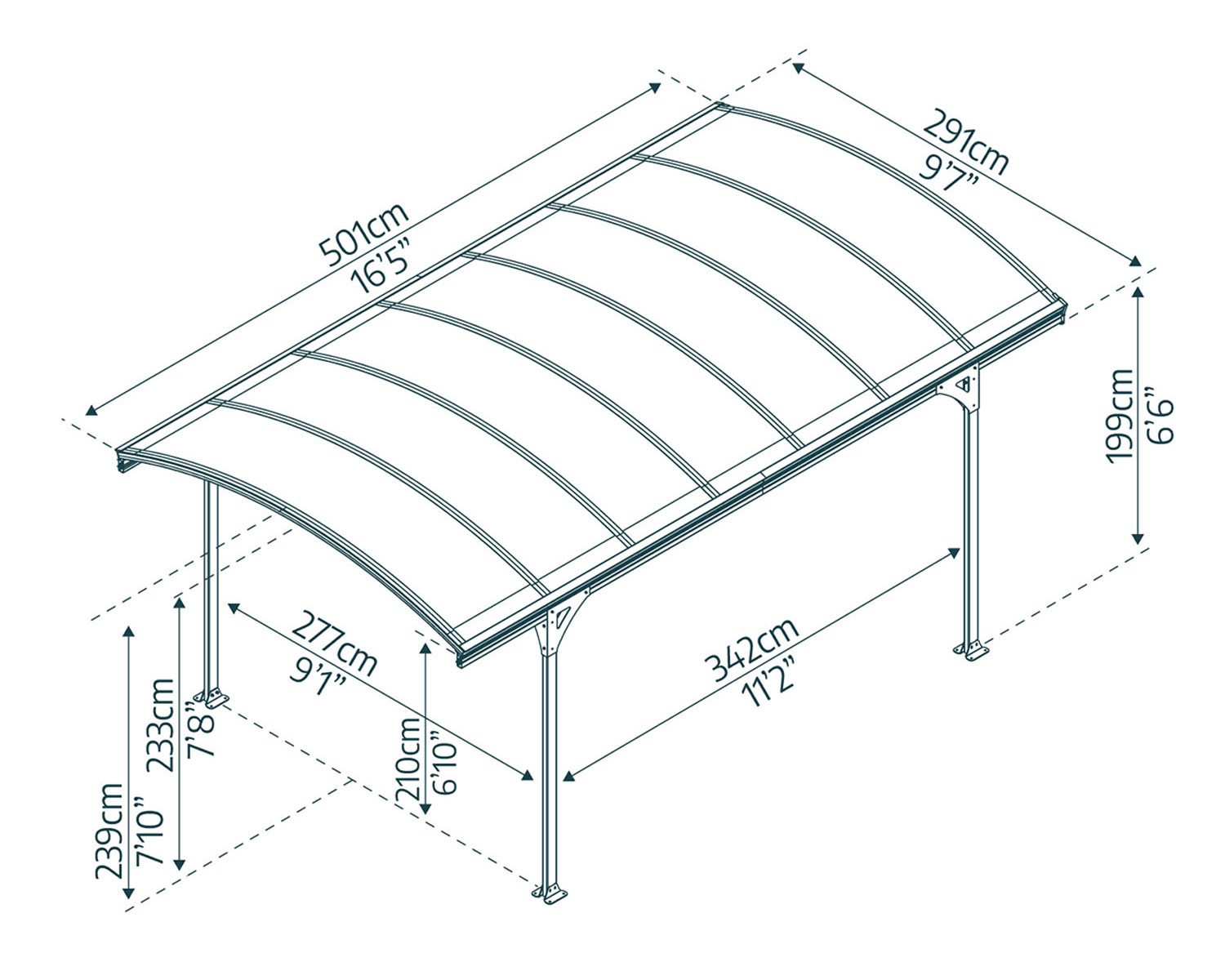

Dimensions

A Length 501cm 16'5"ft
B Width 291cm 9'7"ft
C Height 239cm 7'10"ft

Product Details

EV Charger

For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.

Gutter & Gutter Heads

Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

Aluminum Structure

Rust-resistant, anthracite powder-coated frame made of heavy duty aluminum and laser cut galvanized steel connectors Ready to assemble pre-drilled profiles

Rating and Reviews

4.18 (48 Reviews)
Rating Breakdown
0
0
8
25
15
Post a review
Customer Reviews (48)
  1. Benjamin39 Country: United States (US)

    Good value for everyday use

    I had my doubts initially, especially with the assembly instructions, but the final product is sturdy and worth the effort.
  2. Oliver88 Country: United States (US)

    Kids Love It, Car's Safe Too

    A simple design, but effective at protecting my car. Happy with its performance so far.
  3. Sue Country: United States (US)

    Great, Attractive, Durable

    Didn't like Aluminum Carports. This one fills the bill nicely. Stylish, Protected car from a falling branch, advanced DIY construction. Not hard to assemble, IF IF IF you are able to prepare/pour proper, level, footings, and understand how to drill and use lag sleeves. Straight forward to put up, requires two people. Great looking, sleek, and well made. Bought two.

FAQ

The polycarbonate roof panels can withstand temperatures up to 190 F.
Yes, this keeps the rain off without leaking.
Arcadia™ / Verona™ / Vitoria™ / Palma™ allow 15% light transmission. Arizona™ / Atlas™ allow 10% light transmission.
Yes, it certainly should withstand its impact and maintain its integrity. It will not shatter if an acorn hits it, having said that, it is not recommended to be built directly under a tree.
The carport needs to be properly installed on a concrete slab, concrete footings or deck. The base of the posts has to be anchored onto a solid base / footing and fastened with the foot pads kit. Yes, it is possible to mount on a deck. Please consult with a professional with regards to the appropriate bolts and screws and masonry anchors.
The posts length is 82.7 in. (210 cm)
It is not recommended to paint the polycarbonate panels, please refer to the warranty.
The carport needs to be anchored well and should be on cement footings.
Yes, the Arcadia’s panels are heat resistant, as long as you keep the grill at a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturers safety advise and keep a safe distance. The polycarbonate panels can withstand heat of over 180 degrees F. Make sure you keep a safe distance from the heat source, as per the manufacturer’s safety advise.

Assembly guide

Assembly instructions & Certificates for Downloads

Vitoria_10X16 / 3X5
Vitoria Certificate EN14963:2006

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site

2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Choose your foundation type
Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).



Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.





a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt




a + b + c – 40 cm / 1’4″

C
Dimensions


The Illustration describes center-to-center distance between poles.



Having purchased a longer carport, go to “Foundation Dimensions” page for further information.
