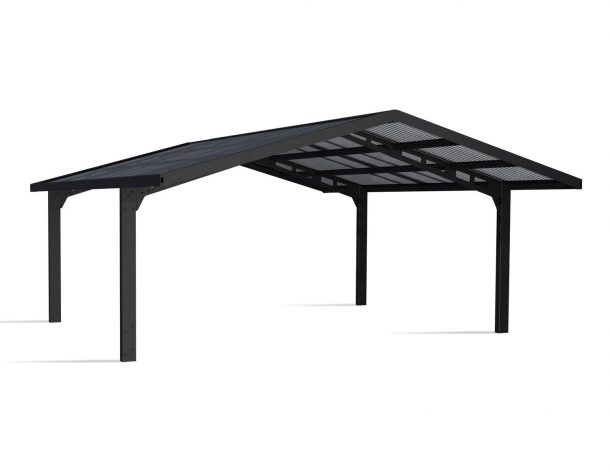

Sydney 20 ft. x 20 ft. Apex Double Carport Kit - Black Structure & Corrugated Solar Grey Panels

Size
Structure color
Roof Shape

The Sydney Cantilever Carport gives you the freedom to park without extra posts. Ideal for turnaround areas or car charging stations, cantilever carports are a great way to protect your vehicle while taking up minimal space. The versatile carport kit boasts panels that transmit sunlight while still providing UV-protection and ample shade, allowing it to work as a flat top carport, patio cover, or outdoor covered lounge area.

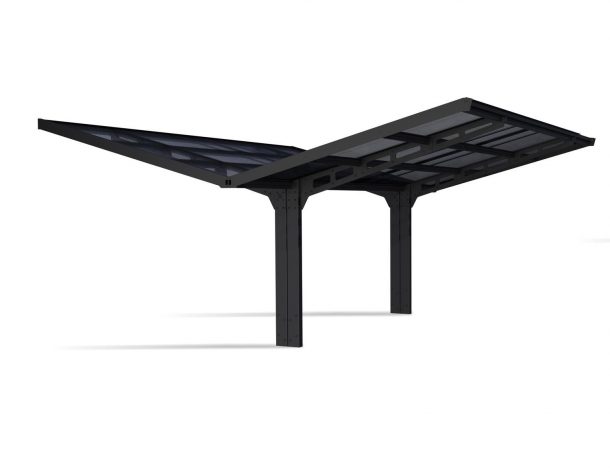

Measuring almost 10 feet wide x 20 feet long, this two-legged car shelter is engineered to withstand volatile weather conditions. The ultra resilient polycarbonate carport includes an internal gutter and is 4 in. wider than competitors. The advantage of the unique design is that the Sydney can be installed as a double carport in an apex or wing shape. Protect your vehicle from snow, hail, wind, and UV-rays in a modern and versatile parking carport.

BEFORE ORDERING – Be sure to check your local building and zoning codes & guidelines and ensure that any/all appropriate permits have been acquired.

  • Versatile Cantilever Carport: The flat top carport has two massive (3 x 6.5 in) posts to optimize space with overhead clearance of 6’6″-9’5″.
  • Durable Structure: Aluminum frame is a strong, rust-resistant grey-coated metal and includes integrated rain gutters to direct rainwater.
  • Resilient Panels: Polycarbonate is 100% UV protected, virtually unbreakable and does not turn yellow or become brittle over time. No need to remove panels for Winter.
  • UV Protection: The corrugated solar grey polycarbonate panels provide 10% light transmission, protecting your vehicles from strong sunlight exposure.
  • Year-Round Weather Resistance: Wind, snow, and hail resistant. Tested to withstand winds up to 75 mph and 15 lb./ft² of snow.
  • Self-Assembly: Easy sliding panel system includes pre-drilled profiles and pre-cut panels making assembly as simple as possible. Concrete footing required for installation.
  • Warranty: 10 Year Limited Warranty. Customers are responsible for ensuring a perfectly flat, level surface site for construction.
Model: #707410

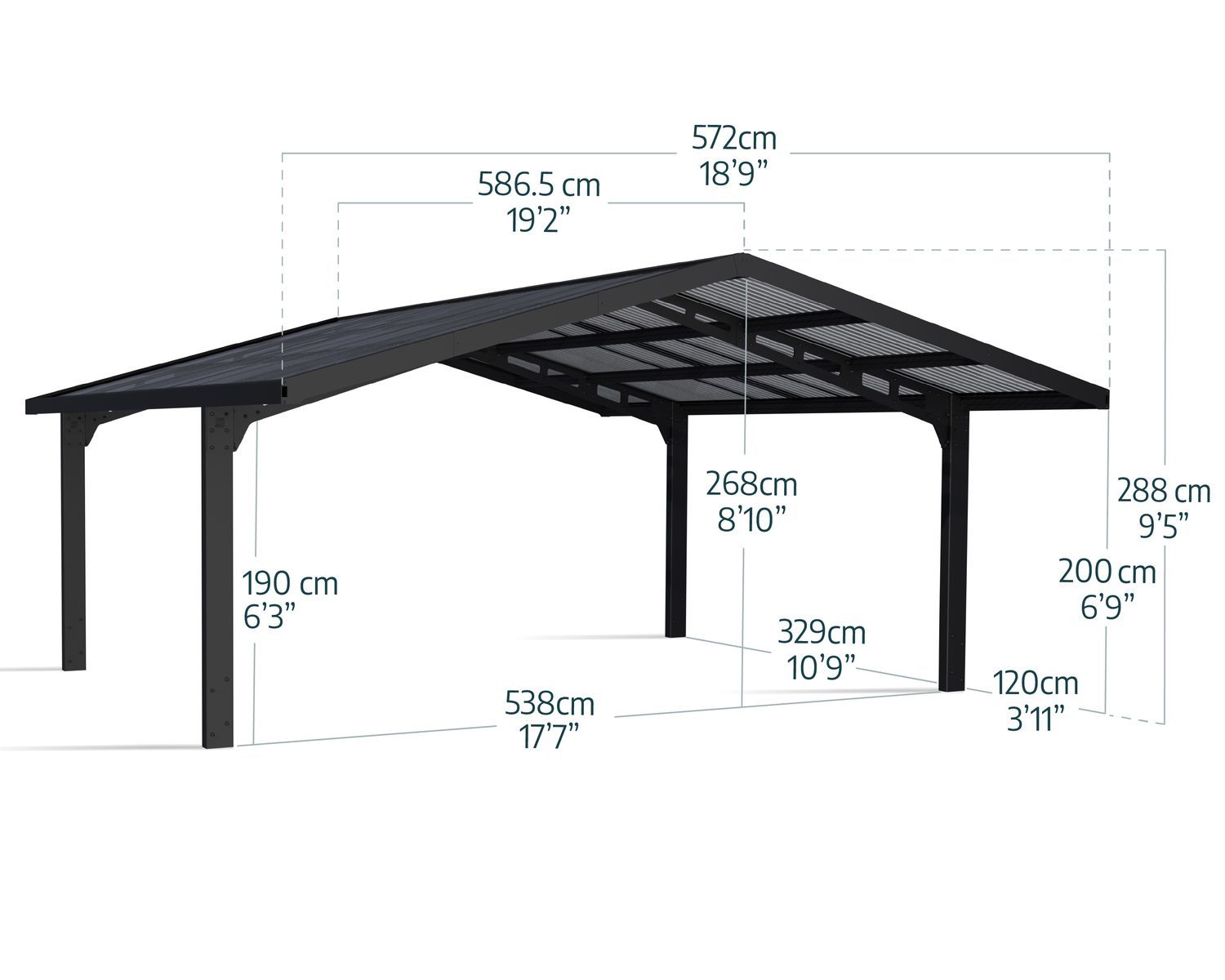

Dimensions

A Length 586cm 19'2"ft
B Width 572cm 18'9"ft
C Height 288cm 9'5"ft

Product Details

Easy Access

Space-saving and easy-to-access carport, thanks to its 4-post structure

Built-in Gutters

Built-in gutters channel rainwater

Heavy Duty Frame

Robust, rust-resistant, powder-coated, ready to assemble pre-drilled profiles made of heavy duty Aluminum & laser cut galvanized steel connectors in anthracite finish Weather resistant designed to withstand severe weather conditions Easy Access 2 post structure

Rating and Reviews

5 (0 Reviews)
Rating Breakdown
0
0
0
0
0
Post a review
Customer Reviews (0)

There are no reviews yet.

FAQ

The polycarbonate roof panels can withstand temperatures up to 190 F.
Yes, this keeps the rain off without leaking.
Arcadia™ / Verona™ / Vitoria™ / Palma™ allow 15% light transmission. Arizona™ / Atlas™ allow 10% light transmission.
Yes, it certainly should withstand its impact and maintain its integrity. It will not shatter if an acorn hits it, having said that, it is not recommended to be built directly under a tree.
The carport needs to be properly installed on a concrete slab, concrete footings or deck. The base of the posts has to be anchored onto a solid base / footing and fastened with the foot pads kit. Yes, it is possible to mount on a deck. Please consult with a professional with regards to the appropriate bolts and screws and masonry anchors.
The posts length is 82.7 in. (210 cm)
It is not recommended to paint the polycarbonate panels, please refer to the warranty.
The carport needs to be anchored well and should be on cement footings.
Yes, the Arcadia’s panels are heat resistant, as long as you keep the grill at a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturers safety advise and keep a safe distance. The polycarbonate panels can withstand heat of over 180 degrees F. Make sure you keep a safe distance from the heat source, as per the manufacturer’s safety advise.

Assembly instructions & Certificates for Downloads

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site

2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Foundation

In order to assemble this product, it is essential to first dig 2 holes (pits) according to the instructions (for all surfaces). Use wooden beams (not supplied) to assist in leveling of the aluminum poles. Pour the concrete casting into the holes and and wait till dries before contiuing assembly



More details are available in Steps 1-7.





C
Dimensions

The Illustration describes center-to-center distance between poles.



Required for assembly (in addition to the previously depicted tools).

1. 8 wooden beams, minimum 6’ long (1.8 m)
2. Concrete
3. Digging equipment, compatible with the soil type and required measurements
