Sydney Double Wings & Apex Carport Kit

Size

Preview in 3D

Preview in AR

Scan QR code for AR preview on your device
Requires compatible Apple iOS 13 or Android with ARCore 1.9+
Structure color
Roof Shape

The Sydney Double Carport gives you the freedom to park two vehicles with plenty of room. Ideal for turnaround areas or car charging stations. The versatile dual carport kit boasts panels that transmit sunlight while still providing UV-protection and ample shade, allowing it to work as a double carport, patio cover, or outdoor covered lounge area.

Measuring almost 20 feet wide x 20 feet long, this dual car shelter is engineered to withstand volatile weather conditions. The ultra resilient polycarbonate carport includes a built-in gutter system, allowing water drainage & collection for a sustainable irrigation system. Protect your vehicle from snow, hail, wind, and UV-rays in an extra-large modern parking garage that is maintenance and rust free.

The Sydney Double Carport Apex provides your family with an Extra-large, elegant cover that is sturdy, maintenance and rust free for many years to come.

  • Versatile Apex Carport: The Apex carport has four massive (3”x6.5”) posts that connect in the center to optimize space and have overhead clearance of 6’6″-9’5″.
  • Durable Structure: Aluminum frame is a strong, rust-resistant, black-coated metal and includes
    integrated rain gutters to direct rainwater.
  • Sun Protection: The corrugated solar grey polycarbonate panels provide 10% light transmission,
    protecting your vehicles from strong sunlight exposure.
  • Resilient Panels: Polycarbonate panels are 100% UV protected, virtually unbreakable and do not turn yellow or become brittle over time.
  • HEAT BLOCK TECHNOLOGY: Protects your vehicle from harmful UV Rays, interior overheating, and reduces extreme heat EV battery degradation.
  • Year-Round Weather Resistance: Wind, snow, and hail resistant.
    Tested to withstand winds up to 75 mph and 13.3 lb./ft² of snow.
  • Self-Assembly: Easy sliding panel system includes pre-drilled profiles and pre-cut panels making assembly as simple as possible. The carport must be fixed on a flat level surface site and concrete footing required.
  • Warranty: 10 Year Limited Warranty.
    We recommend checking local buildings and zoning codes and guidelines.
    Please ensure that any/all appropriate permits were acquired before installing the product.
    Also ensure to install on a flat, leveled surface site for construction with solid base.

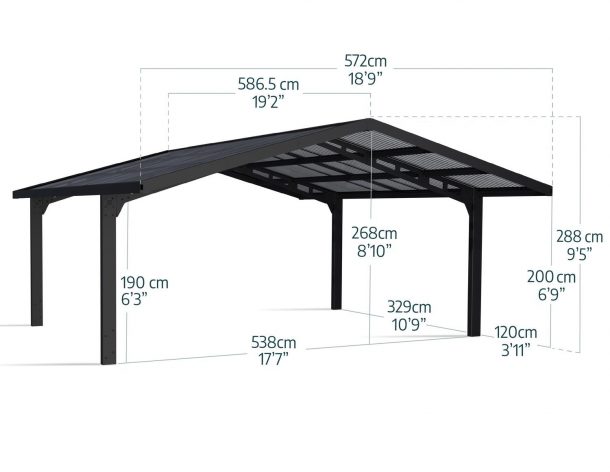

Dimensions

A Length 586.5cm 19'2"ft
B Width 572cm 18'9"ft
C Height 288cm 9'5"ft

Product Details

Easy Access

Space-saving and easy-to-access carport, thanks to its 4-post structure

Built-in Gutters

Built-in gutters channel rainwater

Heavy Duty Frame

Robust, rust-resistant, powder-coated, ready to assemble pre-drilled profiles made of heavy duty Aluminum & laser cut galvanized steel connectors in anthracite finish Weather resistant designed to withstand severe weather conditions Easy Access 2 post structure

Rating and Reviews

4.95 (20 Reviews)
Rating Breakdown
0
0
0
2
18
Post a review
Customer Reviews (20)
  1. OllieWinds Country: Greece

    Simple and Useful

    The self-assembly was straightforward. It's been a worthwhile addition to our property.
  2. MiaLo Country: United States (US)

    It's adding value to our house

    We're considering getting another one for the other side of our driveway!
  3. AvaHern Country: Belgium

    Good Purchase

    Our Sydney Cantilever Carport has made a significant difference in our daily routine. It's easy to access and has kept our vehicles safe from all kinds of weather.

FAQ

The polycarbonate roof panels can withstand temperatures up to 190 F.
Yes, this keeps the rain off without leaking.
Arcadia™ / Verona™ / Vitoria™ / Palma™ allow 15% light transmission. Arizona™ / Atlas™ allow 10% light transmission.
Yes, it certainly should withstand its impact and maintain its integrity. It will not shatter if an acorn hits it, having said that, it is not recommended to be built directly under a tree.
The carport needs to be properly installed on a concrete slab, concrete footings or deck. The base of the posts has to be anchored onto a solid base / footing and fastened with the foot pads kit. Yes, it is possible to mount on a deck. Please consult with a professional with regards to the appropriate bolts and screws and masonry anchors.
The posts length is 82.7 in. (210 cm)
It is not recommended to paint the polycarbonate panels, please refer to the warranty.
The carport needs to be anchored well and should be on cement footings.
Yes, the Arcadia’s panels are heat resistant, as long as you keep the grill at a reasonable distance from the panels, it should be fine. Please make sure you follow the manufacturers safety advise and keep a safe distance. The polycarbonate panels can withstand heat of over 180 degrees F. Make sure you keep a safe distance from the heat source, as per the manufacturer’s safety advise.

Assembly instructions & Certificates for Downloads

Sydney Certificate EN14963:2006
Sydney 10×20 / 3×6 | 20×20 / 6×6

Foundation

A
Prepare the site

The product must be built on a solid anleveled surface in order to perform properly.

1 - Clear the site

2 - Level the ground


Important We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.
B
Foundation

In order to assemble this product, it is essential to first dig 2 holes (pits) according to the instructions (for all surfaces). Use wooden beams (not supplied) to assist in leveling of the aluminum poles. Pour the concrete casting into the holes and and wait till dries before contiuing assembly



More details are available in Steps 1-7.





C
Dimensions

The Illustration describes center-to-center distance between poles.



Required for assembly (in addition to the previously depicted tools).

1. 8 wooden beams, minimum 6’ long (1.8 m)
2. Concrete
3. Digging equipment, compatible with the soil type and required measurements
